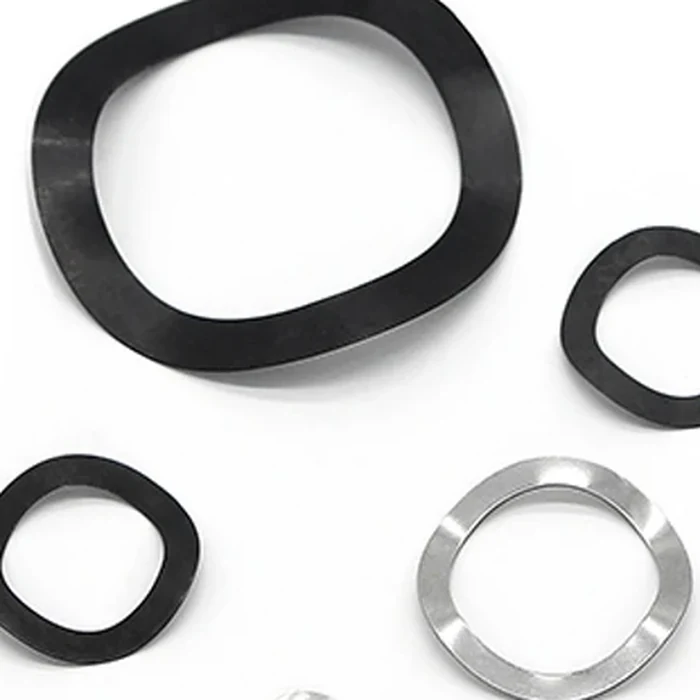

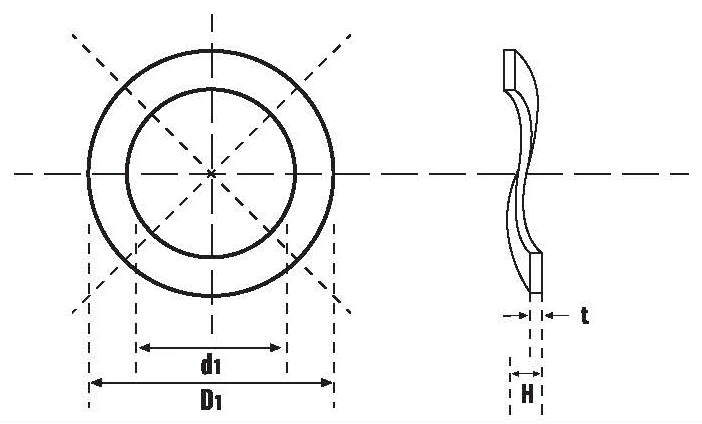

▲ 파도 와셔 도면 · d₁ 내경 · D₁ 외경 · H 높이 · t 두께
※ 원하는 규격이 표에 없으면 비규격 제작 문의가 가능합니다.
| 규격 ↕ | d₁ 내경 기준+허용차 ↕ | D₁ 외경 기준+허용차 ↕ | H 높이 기준+허용차 ↕ | t 두께 기준+허용차 ↕ |
|---|---|---|---|---|
| WW-4 | 4.3+0.3−0.15 | 8.00−0.5 | 1.5+0.50 | 0.2±0.02 |
| WW-5 | 5.4+0.3−0.15 | 9.00−0.5 | 1.5+0.50 | 0.3±0.025 |
| WW-6 | 6.4+0.3−0.15 | 11.00−0.5 | 1.5+0.50 | 0.3±0.025 |
| WW-8 | 8.5+0.3−0.15 | 12.50−0.5 | 2.0+0.50 | 0.3±0.025 |
| WW-10 | 10.5+0.3−0.15 | 14.50−0.5 | 2.0+0.50 | 0.3±0.025 |
| WW-12 | 12.5+0.3−0.15 | 17.00−0.5 | 2.5+0.70 | 0.3±0.025 |
| WW-14 | 14.5+0.3−0.15 | 20.00−0.5 | 2.5+0.70 | 0.3±0.025 |
| WW-16 | 16.7+0.3−0.15 | 22.50−0.5 | 2.5+0.70 | 0.3±0.025 |
| WW-18 | 18.7+0.3−0.15 | 26.00−0.5 | 3.0+0.70 | 0.3±0.025 |
| WW-20 | 20.7+0.3−0.15 | 29.10−0.5 | 3.0+0.70 | 0.3±0.025 |
| WW-23 * | 23.5+0.5−0.3 | 31.00−0.8 | 3.5+0.10 | 0.3±0.025 |
| WW-26 * | 26.4+0.5−0.3 | 34.20−0.8 | 3.5+1−0.5 | 0.3±0.025 |
| WW-30 | 30.4+0.5−0.3 | 39.30−0.8 | 3.5+1−0.5 | 0.3±0.025 |
| WW-32 * | 33.8+0.5−0.3 | 46.00−0.8 | 4.5+1−0.5 | 0.3±0.025 |
| WW-38 * | 39.0+0.7−0.5 | 51.00−1.2 | 5.0+1−0.5 | 0.3±0.025 |
| WW-40 | 40.6+0.7−0.5 | 53.50−1.2 | 5.0+1−0.5 | 0.3±0.025 |
| WW-46 * | 47.5+0.7−0.5 | 61.00−1.2 | 5.5+1−0.5 | 0.4±0.03 |
| WW-50 * | 51.4+0.7−0.5 | 67.50−1.2 | 5.5+1−0.5 | 0.4±0.03 |
| WW-53 * | 54.0+0.7−0.5 | 69.80−1.2 | 6.0+1−0.5 | 0.45±0.03 |
| WW-60 * | 61.9+0.7−0.5 | 79.00−1.2 | 6.5+1−0.5 | 0.45±0.03 |
| WW-6004 | 6.5±0.25 | 10.5±0.25 | 0.8±0.25 | 0.2±0.02 |
| WW-6012 | 6.8±0.25 | 12.6±0.25 | 0.8±0.25 | 0.15±0.02 |
| WW-8511 | 8.5±0.25 | 15.8±0.25 | 1.5±0.25 | 0.3±0.025 |
| WW-9002 | 9.0±0.25 | 15.0±0.25 | 1.5±0.25 | 0.3±0.025 |
| WW-11002 | 11.6±0.25 | 14.9±0.25 | 1.4±0.25 | 0.15±0.02 |
| WW-11003 | 11.2±0.25 | 17.0±0.25 | 2.5±0.25 | 0.3±0.025 |
| WW-11011 | 11.0±0.25 | 15.0±0.25 | 1.8+0.50 | 0.2±0.02 |
| WW-16011 | 16.7±0.25 | 23.4±0.25 | 2.3+0.50 | 0.2±0.02 |
| WW-17011 | 17.5±0.25 | 22.8±0.25 | 2.5+0.70 | 0.3±0.025 |
| 규격 ↕ | 베어링 외경 ↕ | d₁ 내경 ↕ | D₁ 외경 ↕ | H 높이 ↕ | t 두께 ↕ | 적용하는 베어링 No. | |||
|---|---|---|---|---|---|---|---|---|---|
| BWW-624 | 13 | 8.8 | 12.8 | 1.5 | 0.15 | 695 | 624 | 633 | |
| BWW-625 | 16 | 12.0 | 15 | 2 | 0.15 | 625 | 634 | ||
| BWW-626 | 19 | 12.7 | 18.1 | 2.5 | 0.2 | 698 | 607 | 626 | 635 |
| BWW-608 | 22 | 14.5 | 21 | 2.4 | 0.2 | 6900 | 608 | 627 | 636 |
| BWW-629 | 26 | 19.5 | 24.8 | 3.2 | 0.2 | 6000 | 629 | 637 | |
| BWW-6001 | 28 | 20.9 | 26.9 | 3 | 0.25 | 6902 | 6001 | 638 | |
| BWW-6200 | 30 | 22 | 28.5 | 4.1 | 0.25 | 6903 | 6200 | 639 | |
| BWW-6201 | 32 | 23.5 | 30.5 | 4 | 0.25 | 6002 | 6201 | ||
| BWW-6202 | 35 | 26.4 | 33.9 | 3.5 | 0.3 | 6003 | 6202 | 6300 | |
| BWW-6203 | 40 | 29.8 | 38.3 | 5 | 0.3 | 6203 | |||
| BWW-6302 | 42 | 30.1 | 40.6 | 4.5 | 0.3 | 6905 | 6004 | 6302 | |
| BWW-6303 | 47 | 33.7 | 45.5 | 5 | 0.3 | 6906 | 6005 | 6204 | 6303 |
| BWW-6304 | 52 | 37.5 | 49 | 8 | 0.3 | 6205 | 6304 | ||
| BWW-6305 | 62 | 47.2 | 60.2 | 6.5 | 0.4 | 6908 | 6007 | 6206 | 6305 |
| BWW-6306 | 72 | 55 | 70.5 | 7 | 0.45 | 6910 | 6207 | 6306 | |
| BWW-6307 | 80 | 61.3 | 77.8 | 8.5 | 0.45 | 6911 | 6010 | 6208 | 6307 |
| BWW-6308 | 90 | 69 | 88.5 | 7 | 0.6 | 6913 | 6011 | 6210 | 6308 |
| BWW-6309 | 100 | 79.3 | 98.8 | 6.5 | 0.7 | 6914 | 6013 | 6211 | 6309 |
| BWW-6310 | 110 | 88.9 | 108.9 | 8 | 0.8 | 6916 | 6014 | 6212 | 6310 |
| BWW-6311 | 120 | 95.6 | 118.9 | 8.5 | 0.8 | 6917 | 6213 | 6311 | |
| BWW-6312 | 130 | 108.3 | 128.3 | 11 | 0.8 | 6919 | 6017 | 6215 | 6312 |
| BWW-6313 | 140 | 112.4 | 138.4 | 11 | 0.8 | 6920 | 6018 | 6216 | 6313 |
