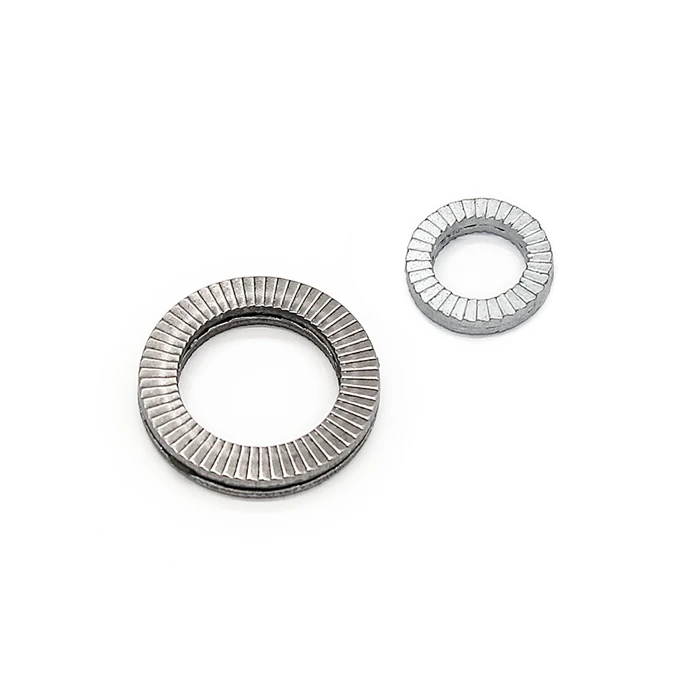

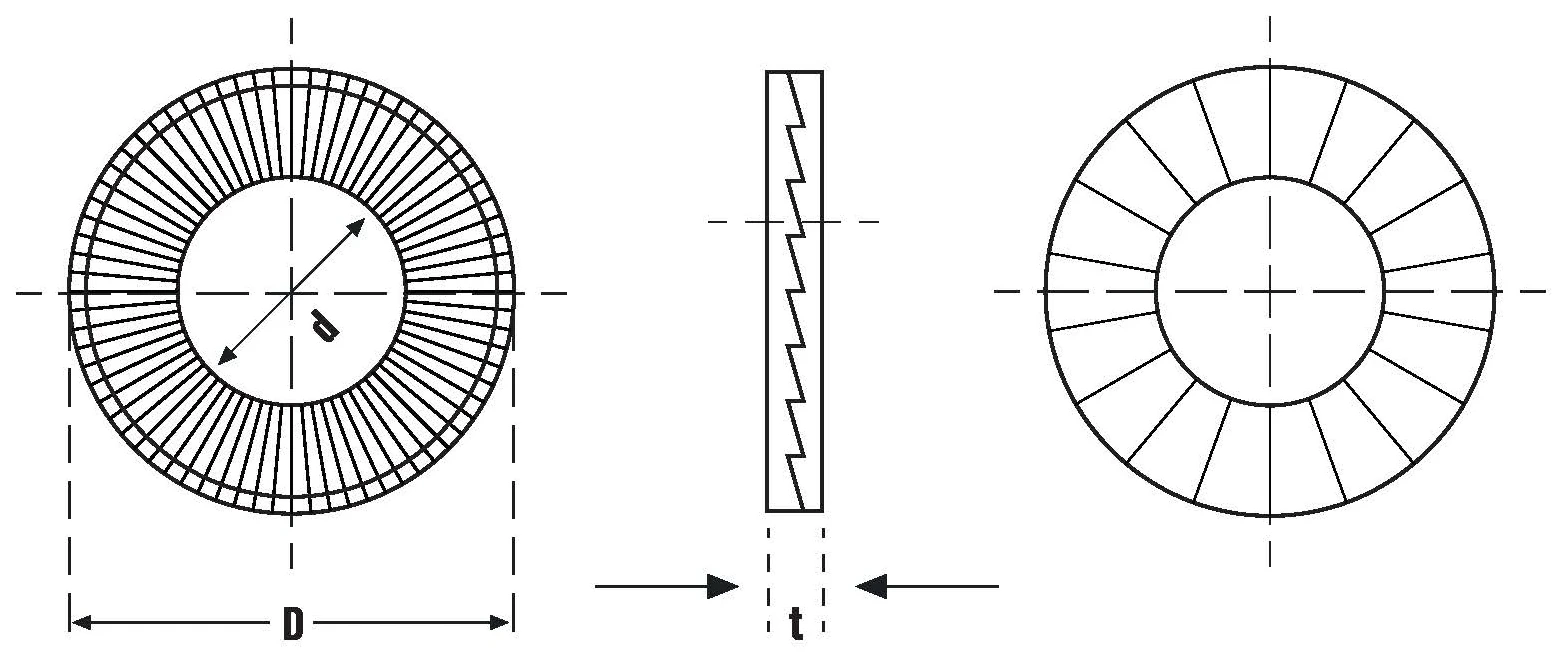

▲ 노드락 도면 · D 외경 · d 내경 · t 두께
※ 규격·재질·수량 등 세부 사양은 문의 주시면 안내드립니다. 비규격 주문 제작 상담도 가능합니다.
| Order No. | d 내경 | D 외경 | t 두께 |
|---|---|---|---|
| NL3 | 3.4 | 7.0 | 1.8 |
| NL3.5 | 3.9 | 7.6 | 1.8 |
| NL4 | 4.4 | 7.6 | 1.8 |
| NL4 sp | 4.4 | 9.0 | 1.8 |
| NL5 | 5.4 | 9.0 | 1.8 |
| NL5 sp | 5.4 | 10.8 | 1.8 |
| NL6 | 6.5 | 10.8 | 1.8 |
| NL6 sp | 6.5 | 13.5 | 2.5 |
| NL1/4" | 7.2 | 11.5 | 1.8 |
| NL1/4" sp | 7.2 | 13.5 | 2.5 |
| NL8 | 8.7 | 13.5 | 2.5 |
| NL8 sp | 8.7 | 16.6 | 2.5 |
| NL3/8" | 10.3 | 16.6 | 2.5 |
| NL3/8" sp | 10.3 | 21.0 | 2.5 |
| NL10 | 10.7 | 16.6 | 2.5 |
| NL10 sp | 10.7 | 21.0 | 2.5 |
| NL11 | 11.4 | 18.5 | 2.5 |
| NL12 | 13.0 | 19.5 | 2.5 |
| NL12 sp | 13.0 | 25.4 | 3.4 |
| NL1/2" | 13.5 | 19.5 | 2.5 |
| NL1/2" sp | 13.5 | 25.4 | 3.4 |
| NL14 | 15.2 | 23.0 | 3.4 |
| NL14 sp | 15.2 | 30.7 | 3.4 |
| NL16 | 17.0 | 25.4 | 3.4 |
| NL16 sp | 17.0 | 34.5 | 3.4 |
| NL18 | 19.5 | 30.7 | 3.4 |
| NL18 sp | 19.5 | 29.0 | 3.4 |
| NL3/4" | 20.0 | 34.5 | 3.4 |
| NL3/4" sp | 20.0 | 39.0 | 3.4 |
| NL20 | 21.4 | 30.7 | 3.4 |
| NL20 sp | 21.4 | 39.0 | 3.4 |
| NL22 | 23.4 | 34.5 | 3.4 |
| NL22 sp | 23.4 | 42.0 | 4.6 |
| NL24 | 25.3 | 39.0 | 3.4 |
| NL24 sp | 25.3 | 48.5 | 4.6 |
| NL1" | 27.9 | 39.0 | 3.4 |
| NL1" sp | 27.9 | 48.5 | 4.6 |
| NL27 | 28.4 | 42.0 | 6.6 |
| NL27 sp | 28.4 | 48.5 | 6.6 |
| NL30 | 31.4 | 47.0 | 6.6 |
| NL33 | 34.4 | 48.5 | 6.6 |
| NL36 | 37.4 | 55.0 | 6.6 |
| NL39 | 40.4 | 58.5 | 6.6 |
| NL42 | 43.2 | 63.0 | 6.6 |
| NL45 | 46.2 | 70.0 | 9.5 |
| NL48 | 49.6 | 75.0 | 9.5 |
| NL52 | 53.6 | 80.0 | 9.5 |
| NL56 | 59.1 | 85.0 | 9.5 |
| NL60 | 63.1 | 90.0 | 9.5 |
| NL64 | 67.1 | 95.0 | 9.5 |
| NL68 | 71.1 | 100.0 | 9.5 |
| NL72 | 75.1 | 105.0 | 9.5 |
| NL76 | 79.1 | 110.0 | 9.5 |
| NL80 | 83.1 | 115.0 | 9.5 |
| NL85 | 88.1 | 120.0 | 9.5 |
| NL90 | 92.4 | 130.0 | 9.5 |
| NL95 | 97.4 | 135.0 | 9.5 |
| NL100 | 103.4 | 145.0 | 9.5 |
| NL105 | 108.4 | 150.0 | 9.5 |
| NL110 | 113.4 | 155.0 | 9.5 |
| NL115 | 118.4 | 165.0 | 9.5 |
| NL120 | 123.4 | 170.0 | 9.5 |
| NL125 | 128.4 | 173.0 | 9.5 |
| NL130 | 133.4 | 178.0 | 9.5 |
