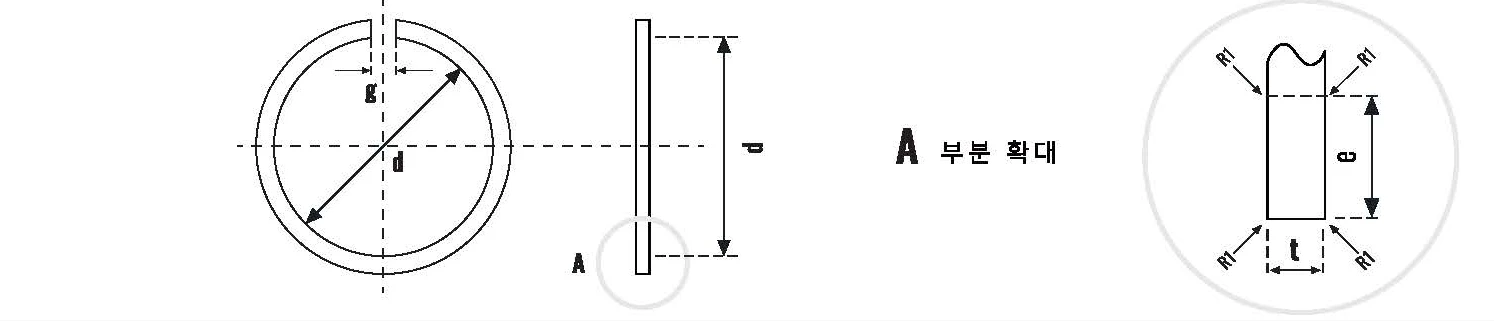

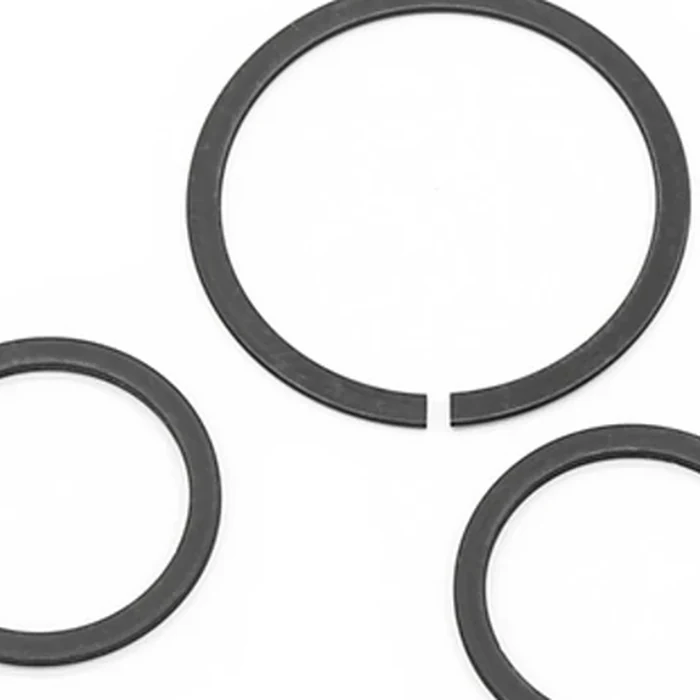

▲ 구름베어링용 스냅링(NR) 도면 — d 지름 · g 절개부 · t 두께 · A부 확대(e·R1)는 아래 규격표와 대응
※ d 치수가 표기되지 않은 소형 규격(NR-11~29)은 재고·치수를 미리 문의해 주세요.
| 규격 ↕ | d 기준·허용차 ↕ | t 기준·허용차 ↕ |
|---|---|---|
| NR-11 | —±0.2 | 1.07±0.05 |
| NR-14 | —±0.2 | 1.07±0.05 |
| NR-15 | —±0.2 | 1.07±0.05 |
| NR-16 | —±0.2 | 1.07±0.05 |
| NR-17 | —±0.2 | 1.07±0.05 |
| NR-19 | —±0.2 | 1.07±0.05 |
| NR-22 | —±0.2 | 1.07±0.05 |
| NR-26 | —±0.2 | 1.07±0.05 |
| NR-28 | —±0.2 | 1.07±0.05 |
| NR-29 | —±0.2 | 1.07±0.05 |
| NR-30 | 27.8±0.2 | 1.07±0.05 |
| NR-32 | 29.8±0.2 | 1.07±0.05 |
| NR-35 | 32.8±0.2 | 1.07±0.05 |
| NR-37 | 34.4±0.2 | 1.07±0.05 |
| NR-40 | 37.7±0.2 | 1.07±0.05 |
| NR-42 | 39.4±0.2 | 1.07±0.05 |
| NR-44 | 41.4±0.2 | 1.07±0.05 |
| NR-47 | 44.1±0.3 | 1.07±0.05 |
| NR-50 | 47.1±0.3 | 1.07±0.05 |
| NR-52 | 49.2±0.3 | 1.07±0.05 |
| NR-55 | 52.1±0.3 | 1.07±0.05 |
| NR-56 | 53.1±0.3 | 1.07±0.05 |
| NR-58 | 55.1±0.3 | 1.07±0.05 |
| NR-62 | 58.9±0.3 | 1.65±0.05 |
| NR-65 | 61.9±0.3 | 1.65±0.05 |
| NR-68 | 64.1±0.3 | 1.65±0.05 |
| NR-72 | 68.1±0.3 | 1.65±0.05 |
| NR-75 | 71.1±0.3 | 1.65±0.05 |
| NR-80 | 76.1±0.3 | 1.65±0.05 |
| NR-85 | 81.1±0.3 | 1.65±0.05 |
| NR-90 | 86.1±0.3 | 2.41±0.05 |
| NR-95 | 91.1±0.3 | 2.41±0.05 |
| NR-100 | 96.1±0.3 | 2.41±0.05 |
| NR-110 | 106.1±0.3 | 2.41±0.05 |
| NR-115 | 111.1±0.3 | 2.41±0.05 |
| NR-120 | 114.4±0.4 | 2.77±0.05 |
| NR-125 | 119.4±0.4 | 2.77±0.05 |
| NR-130 | 124.4±0.4 | 2.77±0.05 |
| NR-140 | 134.4±0.4 | 2.77±0.05 |
| NR-145 | 139.4±0.4 | 2.77±0.05 |
| NR-150 | 144.4±0.4 | 3.05±0.05 |
| NR-160 | 154.4±0.4 | 3.05±0.05 |
| NR-170 | 162.9±0.4 | 3.05±0.05 |
| NR-180 | 172.9±0.4 | 3.05±0.05 |
