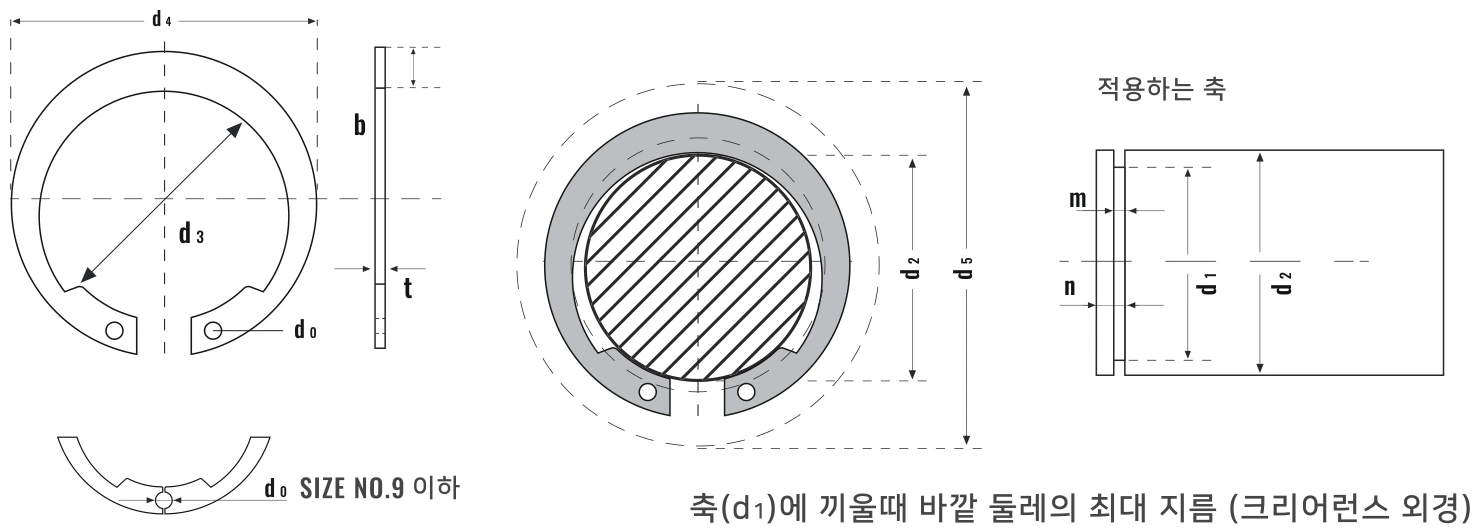

▲ 둥근 S형 멈춤링 도면 — 치수 기호(d1·d2·d3·d4·d5·t·m)는 아래 규격표와 대응 · d5는 축(d1)에 끼울때 바깥 둘레의 최대 지름(크리어런스 외경)
※ * 표시는 비규격 제품 — 이용하실 때는 미리 문의해 주세요.
| 규격 ↕ | 멈춤링 | d5 ↕ | 적용하는 축 (홈 가공) | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| d3 기준·허용차 ↕ | t 기준·허용차 ↕ | d4 약 ↕ | h 약 ↕ | d0 최소 ↕ | 보통 허용차 ↕ | d1 ↕ | d2 기준·허용차 ↕ | m 기준·허용차 ↕ | n 최소 ↕ | ||
| ISTW-6 | 5.6−0.1−0.2 | 0.5±0.03 | 8 | 1.2 | 0.22 | ±0.2 | 8.9 | 6 | 5.7+0.040 | 0.6+0.10 | 1.5 |
| ISTW-7 | 6.5−0.1−0.2 | 0.6±0.03 | 9.3 | 1.4 | 0.24 | ±0.2 | 10.3 | 7 | 6.70−0.06 | 0.7+0.10 | 1.5 |
| ISTW-8 | 7.4−0.1−0.2 | 0.7±0.04 | 10.6 | 1.6 | 0.3 | ±0.2 | 11.7 | 8 | 7.60−0.06 | 0.8+0.10 | 1.5 |
| ISTW-9 | 8.4−0.1−0.2 | 0.8±0.04 | 12 | 1.8 | 0.34 | ±0.2 | 13.1 | 9 | 8.60−0.06 | 0.95+0.10 | 1.5 |
| ISTW-10 | 9.3±0.15 | 1±0.05 | 13.3 | 2 | 1.2 | ±0.3 | 14.5 | 10 | 9.60−0.09 | 1.15+0.140 | 1.5 |
| ISTW-11 | 10.2±0.15 | 1±0.05 | 14.4 | 2.1 | 1.2 | ±0.3 | 16 | 11 | 10.50−0.11 | 1.15+0.140 | 1.5 |
| ISTW-12 | 11.1±0.18 | 1±0.05 | 15.5 | 2.2 | 1.2 | ±0.3 | 17.2 | 12 | 11.50−0.11 | 1.15+0.140 | 1.5 |
| ISTW-13 | 12±0.18 | 1±0.05 | 16.6 | 2.3 | 1.2 | ±0.3 | 18.4 | 13 | 12.40−0.11 | 1.15+0.140 | 1.5 |
| ISTW-14 | 12.9±0.18 | 1±0.05 | 17.5 | 2.3 | 1.2 | ±0.3 | 19.4 | 14 | 13.40−0.11 | 1.15+0.140 | 1.5 |
| ISTW-15 | 13.8±0.18 | 1±0.05 | 18.6 | 2.4 | 1.2 | ±0.3 | 20.6 | 15 | 14.30−0.11 | 1.15+0.140 | 1.5 |
| ISTW-16 | 14.7±0.18 | 1±0.05 | 19.7 | 2.5 | 1.2 | ±0.3 | 21.8 | 16 | 15.20−0.11 | 1.15+0.140 | 1.5 |
| ISTW-17 | 15.7±0.18 | 1±0.05 | 20.9 | 2.6 | 1.2 | ±0.3 | 23 | 17 | 16.20−0.11 | 1.15+0.140 | 1.5 |
| ISTW-18 | 16.5±0.2 | 1.2±0.06 | 21.9 | 2.7 | 1.5 | ±0.4 | 24.2 | 18 | 170−0.11 | 1.35+0.140 | 1.5 |
| ISTW-19 | 17.5±0.2 | 1.2±0.06 | 23.1 | 2.8 | 1.5 | ±0.4 | 25.4 | 19 | 180−0.11 | 1.35+0.140 | 1.5 |
| ISTW-20 | 18.5±0.2 | 1.2±0.06 | 24.3 | 2.9 | 1.5 | ±0.4 | 27 | 20 | 190−0.21 | 1.35+0.140 | 1.5 |
| ISTW-21 | 19.5±0.2 | 1.2±0.06 | 25.5 | 3 | 1.5 | ±0.4 | 28 | 21 | 200−0.21 | 1.35+0.140 | 1.5 |
| ISTW-22 | 20.5±0.2 | 1.2±0.06 | 26.5 | 3 | 1.5 | ±0.4 | 29 | 22 | 210−0.21 | 1.35+0.140 | 1.5 |
| ISTW-24 | 22.2±0.2 | 1.2±0.06 | 28.6 | 3.2 | 1.5 | ±0.4 | 31.5 | 24 | 22.90−0.21 | 1.35+0.140 | 1.5 |
| ISTW-25 | 23.2±0.2 | 1.2±0.06 | 29.8 | 3.3 | 1.5 | ±0.4 | 33 | 25 | 23.90−0.21 | 1.35+0.140 | 1.5 |
| ISTW-26 | 24.2±0.2 | 1.2±0.06 | 31 | 3.4 | 1.5 | ±0.4 | 34 | 26 | 24.90−0.21 | 1.35+0.140 | 1.5 |
| ISTW-28 | 25.9±0.25 | 1.5±0.06 | 33.1 | 3.6 | 1.8 | ±0.4 | 36.5 | 28 | 26.60−0.21 | 1.65+0.140 | 1.5 |
| ISTW-29 * | 26.9±0.25 | 1.5±0.06 | 34.1 | 3.6 | 1.8 | ±0.4 | 37.5 | 29 | 27.60−0.21 | 1.65+0.140 | 1.5 |
| ISTW-30 | 27.9±0.25 | 1.5±0.06 | 35.3 | 3.7 | 1.8 | ±0.4 | 38.5 | 30 | 28.60−0.21 | 1.65+0.140 | 1.5 |
| ISTW-32 | 29.9±0.25 | 1.5±0.06 | 37.4 | 3.9 | 1.8 | ±0.4 | 41 | 32 | 30.30−0.21 | 1.65+0.140 | 1.5 |
| ISTW-34 | 31.5±0.25 | 1.5±0.06 | 39.7 | 4.1 | 1.8 | ±0.4 | 43.5 | 34 | 32.30−0.21 | 1.65+0.140 | 1.5 |
| ISTW-35 | 32.2±0.25 | 1.5±0.06 | 40.6 | 4.2 | 1.8 | ±0.4 | 45 | 35 | 330−0.21 | 1.65+0.140 | 1.5 |
| ISTW-36 | 33.2±0.4 | 1.75±0.06 | 41.6 | 4.2 | 2 | ±0.4 | 46 | 36 | 340−0.25 | 1.9+0.140 | 1.5 |
| ISTW-38 | 35.2±0.4 | 1.75±0.06 | 44 | 4.4 | 2 | ±0.4 | 48 | 38 | 360−0.25 | 1.9+0.140 | 1.5 |
| ISTW-40 | 37±0.4 | 1.75±0.06 | 46.2 | 4.6 | 2 | ±0.4 | 51 | 40 | 380−0.25 | 1.9+0.140 | 1.5 |
| ISTW-42 | 38.5±0.4 | 1.75±0.06 | 48.1 | 4.8 | 2 | ±0.5 | 54 | 42 | 39.50−0.25 | 1.9+0.140 | 1.5 |
| ISTW-45 | 41.5±0.4 | 1.75±0.06 | 51.3 | 4.9 | 2 | ±0.5 | 57 | 45 | 42.50−0.25 | 1.9+0.140 | 1.5 |
| ISTW-48 | 44.5±0.4 | 1.75±0.06 | 55.1 | 5.3 | 2 | ±0.5 | 61 | 48 | 45.50−0.25 | 1.9+0.140 | 1.5 |
| ISTW-50 | 45.8±0.4 | 2±0.06 | 56.8 | 5.5 | 2.5 | ±0.5 | 63 | 50 | 470−0.25 | 2.2+0.140 | 2 |
| ISTW-52 * | 47.8±0.4 | 2±0.06 | 59 | 5.6 | 2.5 | ±0.5 | 65 | 52 | 490−0.25 | 2.2+0.140 | 2 |
| ISTW-55 | 50.8±0.45 | 2±0.06 | 62.6 | 5.9 | 2.5 | ±0.5 | 69 | 55 | 520−0.3 | 2.2+0.140 | 2 |
| ISTW-56 * | 51.8±0.45 | 2±0.06 | 63.8 | 6 | 2.5 | ±0.5 | 70 | 56 | 530−0.3 | 2.2+0.140 | 2 |
| ISTW-58 | 53.8±0.45 | 2±0.06 | 66 | 6.1 | 2.5 | ±0.5 | 72 | 58 | 550−0.3 | 2.2+0.140 | 2 |
| ISTW-60 | 55.8±0.45 | 2±0.06 | 68.4 | 6.3 | 2.5 | ±0.5 | 75 | 60 | 570−0.3 | 2.2+0.140 | 2 |
| ISTW-62 | 57.8±0.45 | 2±0.06 | 70.8 | 6.5 | 2.5 | ±0.5 | 77 | 62 | 590−0.3 | 2.2+0.140 | 2 |
| ISTW-63 * | 58.8±0.45 | 2±0.06 | 72 | 6.6 | 2.5 | ±0.5 | 78 | 63 | 600−0.3 | 2.2+0.140 | 2 |
| ISTW-65 | 60.8±0.45 | 2.5±0.08 | 74.4 | 6.8 | 3 | ±0.5 | 81 | 65 | 620−0.3 | 2.7+0.140 | 2.5 |
| ISTW-68 * | 63.5±0.45 | 2.5±0.08 | 77.5 | 7 | 3 | ±0.5 | 84 | 68 | 650−0.3 | 2.7+0.140 | 2.5 |
| ISTW-70 | 65.5±0.45 | 2.5±0.08 | 79.9 | 7.2 | 3 | ±0.5 | 87 | 70 | 670−0.3 | 2.7+0.140 | 2.5 |
| ISTW-72 * | 67.5±0.45 | 2.5±0.08 | 82.1 | 7.3 | 3 | ±0.7 | 89 | 72 | 690−0.3 | 2.7+0.140 | 2.5 |
| ISTW-75 * | 70.5±0.45 | 2.5±0.08 | 85.7 | 7.6 | 3 | ±0.7 | 92 | 75 | 720−0.3 | 2.7+0.140 | 2.5 |
| ISTW-78 * | 73.5±0.45 | 2.5±0.08 | 89.3 | 7.9 | 3 | ±0.7 | 96 | 78 | 750−0.3 | 2.7+0.140 | 2.5 |
| ISTW-80 * | 74.5±0.45 | 2.5±0.08 | 90.5 | 8 | 3 | ±0.7 | 98 | 80 | 76.50−0.3 | 2.7+0.140 | 2.5 |
| ISTW-82 * | 76.5±0.45 | 2.5±0.08 | 92.9 | 8.2 | 3 | ±0.7 | 101 | 82 | 78.50−0.3 | 2.7+0.140 | 2.5 |
| ISTW-85 * | 79.5±0.55 | 3±0.09 | 96.5 | 8.5 | 3.5 | ±0.7 | 104 | 85 | 81.50−0.35 | 3.2+0.180 | 3 |
| ISTW-88 * | 82.5±0.55 | 3±0.09 | 99.9 | 8.7 | 3.5 | ±0.7 | 108 | 88 | 84.50−0.35 | 3.2+0.180 | 3 |
| ISTW-90 * | 84.5±0.55 | 3±0.09 | 102.3 | 8.9 | 3.5 | ±0.7 | 110 | 90 | 86.50−0.35 | 3.2+0.180 | 3 |
| ISTW-95 * | 89.5±0.55 | 3±0.09 | 108.1 | 9.3 | 3.5 | ±0.7 | 116 | 95 | 91.50−0.35 | 3.2+0.180 | 3 |
| ISTW-100 * | 94.5±0.55 | 3±0.09 | 113.9 | 9.7 | 3.5 | ±0.7 | 122 | 100 | 96.50−0.35 | 3.2+0.180 | 3 |
