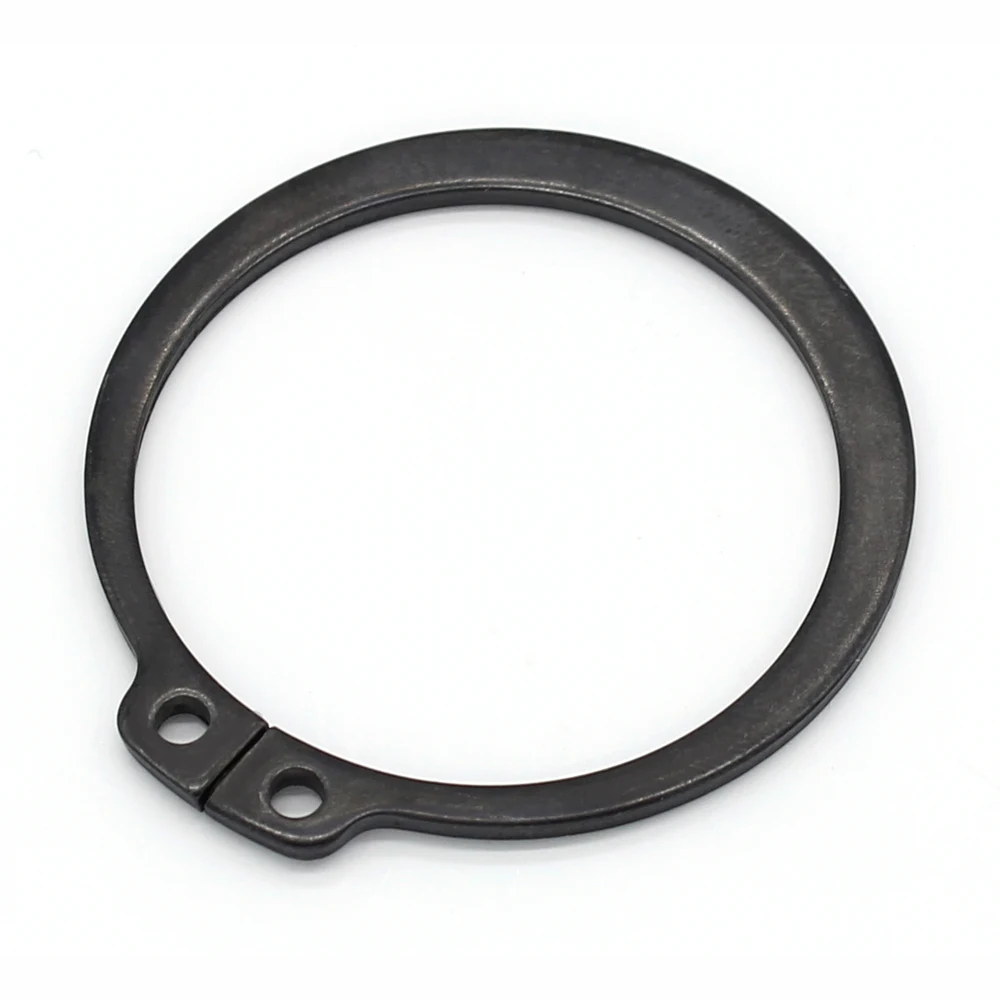

축용 C형 멈춤링 STW 실물 (클릭하면 확대)

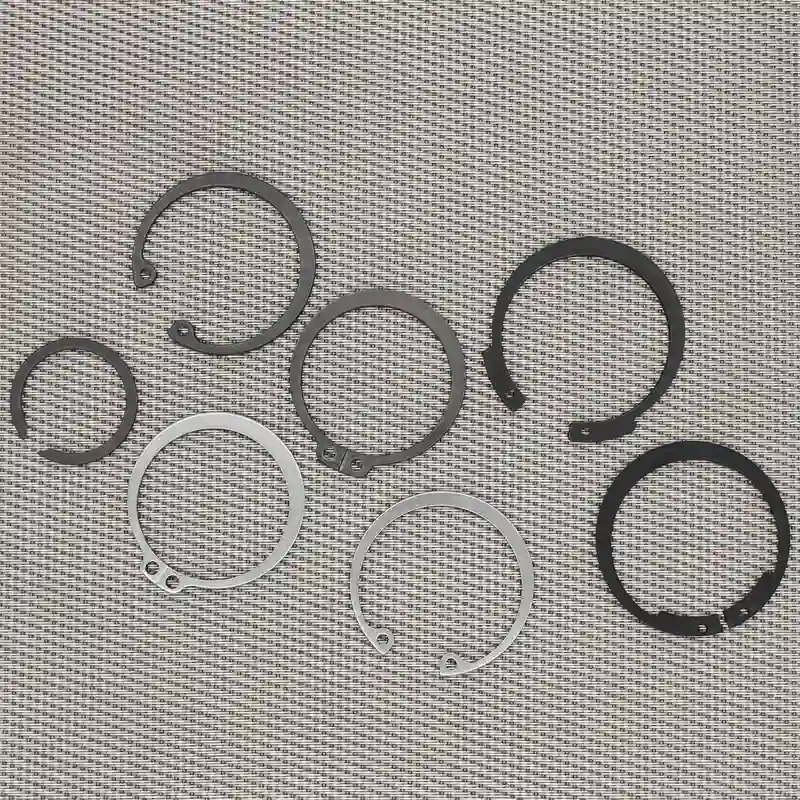

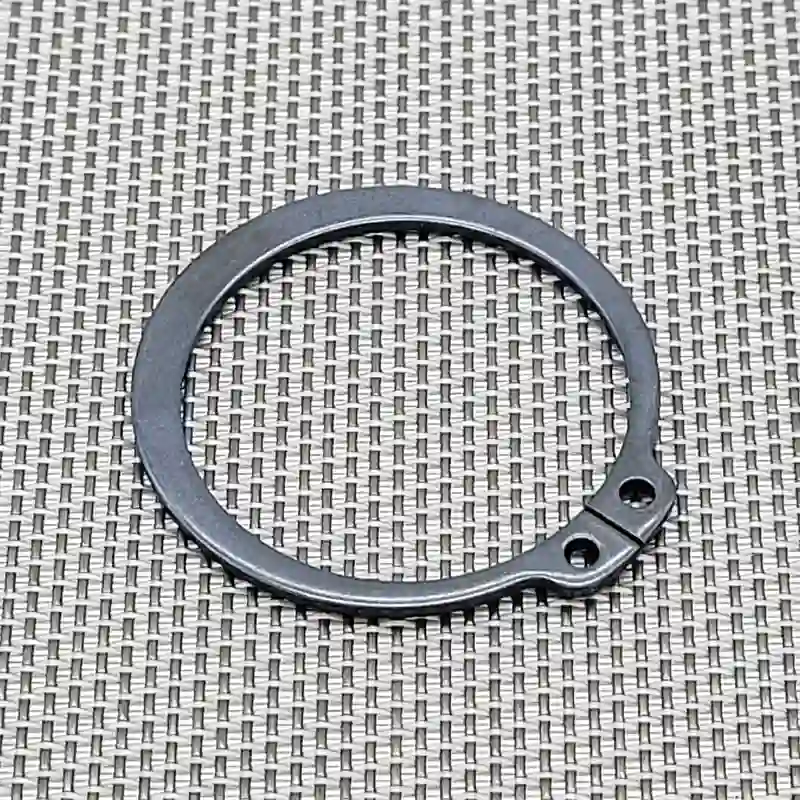

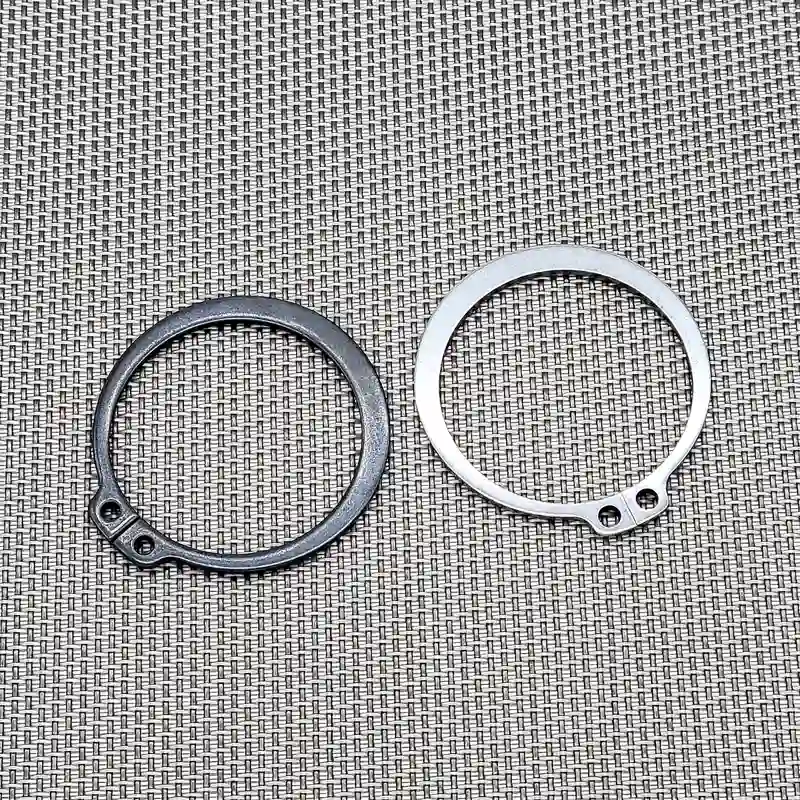

STW 단품 러그(귀) 상세 흑착·스텐 재질 비교 규격 다양
Snap Ring · Retaining Ring

축용 C형 멈춤링 (STW)

External Retaining Ring for Shaft
유형 축용 C형 (External) 규격 STW-3 ~ 300 재질 SK5 / SUS304 경도 HRC 44~52 표면처리 흑착 / 인산피막 표준 KS B1336 · JIS B2804

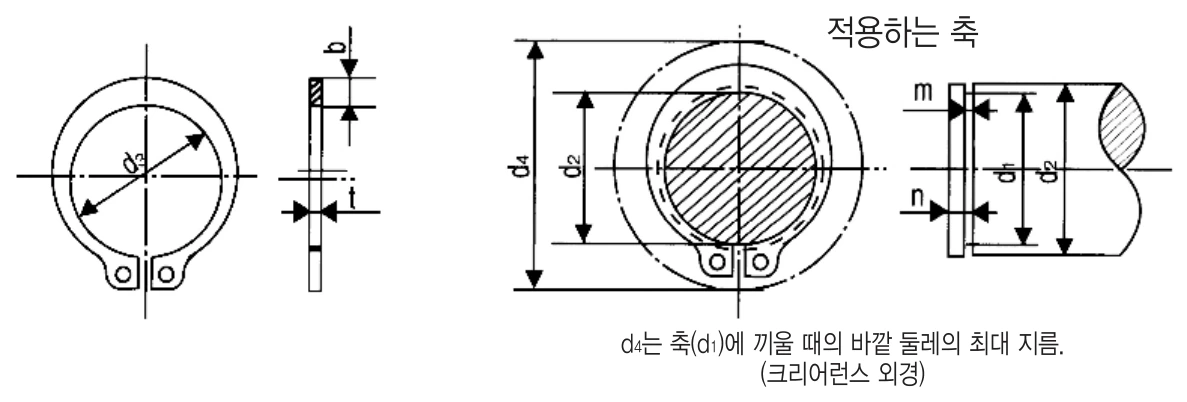

축용 C형 멈춤링 STW 도면 — d3 멈춤링 지름, t 두께, d1 적용 축, d2 홈 지름, d4 장착 시 최대 외경, m·n 홈 치수

▲ 치수 기호 도면 (d3·t·d1·d2·d4·m·n) · 규격표와 대응 · 클릭 시 확대

※ 원하는 규격이 표에 없으면 비규격 제작 문의가 가능합니다.

규격표 (멈춤링 + 적용하는 축 · STW-3~300 · 단위 mm · 열 제목 클릭 정렬)

🔍

※ 각 치수 기호(d3·t·b·a·d0·d4·d1·d2·m·n)의 위치는 위 도면 참조 · d4=축에 끼울 때 바깥 둘레의 최대 지름(크리어런스 외경) · n=홈깊이 최소 · 단위 mm

규격 ↕ 멈춤링 d4 ↕ 적용하는 축 (홈 가공)
d3 기준·허용차 ↕ t 기준·허용차 ↕ b 약 ↕ a 약 ↕ d0 최소 ↕ d1 ↕ d2 기준·허용차 ↕ m 기준·허용차 ↕ n 최소 ↕
STW-3 *2.7+0.04−0.150.25±0.0250.51.70.7732.850−0.040.35+0.100.3
STW-43.7+0.04−0.150.4±0.030.92.20.8943.80−0.040.5+0.100.3
STW-54.7+0.04−0.150.6±0.041.12.40.810.554.80−0.040.7+0.100.3
STW-65.6+0.04−0.150.7±0.041.32.811265.70−0.040.8+0.100.5
STW-76.5+0.06−0.20.8±0.041.4311476.70−0.060.9+0.100.5
STW-87.4+0.06−0.20.8±0.041.6311587.60−0.060.9+0.100.6
STW-98.4+0.06−0.21±0.051.83.211698.60−0.061.15+0.1400.6
STW-109.3±0.151±0.051.831.217109.60−0.091.15+0.1401.5
STW-1110.2±0.151±0.0523.11.2181110.50−0.111.15+0.1401.5
STW-1211.1±0.181±0.052.13.21.5191211.50−0.111.15+0.1401.5
STW-1312.0±0.181±0.052.13.31.5201312.40−0.111.15+0.1401.5
STW-1412.9±0.181±0.052.23.41.7221413.40−0.111.15+0.1401.5
STW-1513.8±0.181±0.052.23.51.7231514.30−0.111.15+0.1401.5
STW-1614.7±0.181±0.052.23.61.7241615.20−0.111.15+0.1401.5
STW-1715.7±0.181±0.052.23.71.7251716.20−0.111.15+0.1401.5
STW-1816.5±0.21.2±0.062.63.81.72618170−0.111.35+0.1401.5
STW-1917.5±0.21.2±0.062.73.822719180−0.111.35+0.1401.5
STW-2018.5±0.21.2±0.062.73.922820190−0.211.35+0.1401.5
STW-2119.5±0.21.2±0.062.7423021200−0.211.35+0.1401.5
STW-2220.5±0.21.2±0.062.74.123122210−0.211.35+0.1401.5
STW-23 *21.4±0.21.2±0.062.94.5232.523220−0.211.35+0.1401.5
STW-2422.2±0.21.2±0.063.14.22332422.90−0.211.35+0.1401.7
STW-2523.2±0.21.2±0.063.14.32342523.90−0.211.35+0.1401.7
STW-2624.2±0.21.2±0.063.14.42352624.90−0.211.35+0.1401.7
STW-27 *25.0±0.21.2±0.063.34.52362725.80−0.211.35+0.1401.8
STW-2825.9±0.21.6±0.063.14.62382826.60−0.211.65+0.1402.1
STW-2926.9±0.21.6±0.063.54.72392927.60−0.211.65+0.1402.1
STW-3027.9±0.21.6±0.063.54.82403028.60−0.211.65+0.1402.1
STW-3229.6±0.21.6±0.063.552.5433230.30−0.211.65+0.1402.6
STW-3431.5±0.251.6±0.0645.32.5453432.30−0.211.65+0.1402.6
STW-3532.2±0.251.6±0.0645.42.54635330−0.211.65+0.1403
STW-3633.2±0.251.8±0.0745.42.54736340−0.221.9+0.1403
STW-3835.2±0.251.8±0.074.55.62.55038360−0.221.9+0.1403
STW-4037.0±0.41.8±0.074.55.82.55340380−0.221.9+0.1403
STW-4238.5±0.41.8±0.074.56.22.5554239.50−0.221.9+0.1403.8
STW-4541.5±0.41.8±0.074.86.32.5584542.50−0.221.9+0.1403.8
STW-47 *43.4±0.41.8±0.0756.62.5614744.50−0.221.9+0.1403.8
STW-4844.5±0.41.8±0.074.86.52.5624845.50−0.221.9+0.1403.8
STW-5045.8±0.42±0.0756.72.56450470−0.222.2+0.1404.5
STW-5247.8±0.42±0.0756.82.56652490−0.222.2+0.1404.5
STW-5550.8±0.452±0.07572.57055520−0.32.2+0.1404.5
STW-5651.8±0.452±0.07572.57156530−0.32.2+0.1404.5
STW-5853.8±0.452±0.075.57.12.57358550−0.32.2+0.1404.5
STW-6055.8±0.452±0.075.57.22.57560570−0.32.2+0.1404.5
STW-6257.8±0.452±0.075.57.22.57762590−0.32.2+0.1404.5
STW-63 *58.8±0.452±0.075.57.32.57863600−0.32.2+0.1404.5
STW-6560.8±0.452.5±0.086.47.42.58165620−0.32.7+0.1404.5
STW-6863.5±0.452.5±0.086.47.82.58468650−0.32.7+0.1804.5
STW-7065.5±0.452.5±0.086.47.82.58670670−0.32.7+0.1804.5
STW-7267.5±0.452.5±0.0877.92.58872690−0.32.7+0.1804.5
STW-7570.5±0.452.5±0.0877.92.59275720−0.32.7+0.1804.5
STW-7873.5±0.452.5±0.087.48.12.59578750−0.32.7+0.1804.5
STW-8074.5±0.452.5±0.087.48.22.5978076.50−0.32.7+0.1805.3
STW-8276.5±0.452.5±0.087.48.33998278.50−0.32.7+0.1805.3
STW-8579.5±0.453±0.0988.431038581.50−0.353.2+0.1805.3
STW-88 *82.5±0.553±0.0988.631068884.50−0.353.2+0.1805.3
STW-9084.5±0.553±0.0988.731089086.50−0.353.2+0.1805.3
STW-9589.5±0.553±0.098.59.131149591.50−0.353.2+0.1805.3
STW-10094.5±0.553±0.0999.5311910096.50−0.353.2+0.1805.3
STW-10598±0.554±0.099.59.831251051010−0.544.2+0.1806
STW-110103±0.554±0.099.51031311101060−0.544.2+0.1806
STW-115108±0.554±0.099.510.531371151110−0.544.2+0.1806
STW-120113±0.554±0.0910.310.931431201160−0.544.2+0.1806
STW-125118±0.554±0.0910.311.33.51481251210−0.634.2+0.1806
STW-130123+0.63−1.264±0.091111.53.51541301260−0.634.2+0.206
STW-135128+0.63−1.264±0.091111.53.51591351310−0.634.2+0.206
STW-140133+0.63−1.264±0.091111.83.51641401360−0.634.2+0.206
STW-145138+0.63−1.264±0.0911.611.83.51701451410−0.634.2+0.206
STW-150142+0.63−1.264±0.0911.612.33.51751501450−0.634.2+0.207.5
STW-155146+0.63−1.264±0.0912.212.73.51811551500−0.634.2+0.207.5
STW-160151+0.63−1.264±0.0912.212.93.51861601550−0.634.2+0.207.5
STW-165155.5+0.63−1.264±0.0912.913.13.51921651600−0.634.2+0.207.5
STW-170160.5+0.63−1.264±0.0912.9−41971701650−0.634.2+0.207.5
STW-175165.5+0.63−1.264±0.0913.5−42021751700−0.634.2+0.207.5
STW-180170.5+0.63−1.264±0.0913.5−42081801750−0.634.2+0.207.5
STW-185175.5+0.72−1.444±0.0914−42131851800−0.634.2+0.207.5
STW-190180.5+0.72−1.444±0.0914−42191901850−0.724.2+0.207.5
STW-195185.5+0.72−1.444±0.0914−42241951900−0.724.2+0.207.5
STW-200190.5+0.72−1.444±0.0914−42292001950−0.724.2+0.207.5
STW-210198+0.72−1.445±0.1514−42392102040−0.725.2+0.2509
STW-220208+0.72−1.445±0.1514−42492202140−0.725.2+0.2509
STW-230218+0.72−1.445±0.1514−42592302240−0.725.2+0.2509
STW-240228+0.72−1.445±0.1514−42692402340−0.725.2+0.2509
STW-250238+0.72−1.445±0.1514−42792502440−0.725.2+0.2509
STW-260245+0.72−1.445±0.1516−42932602520−0.815.2+0.25012
STW-270255+0.81−1.625±0.1516−43032702620−0.815.2+0.25012
STW-280265+0.81−1.625±0.1516−43132802720−0.815.2+0.25012
STW-290275+0.81−1.625±0.1516−43232902820−0.815.2+0.25012
STW-300285+0.81−1.625±0.1516−43333002920−0.815.2+0.25012
검색 결과가 없습니다. 다른 규격·치수로 검색하거나 문의해 주세요.
※ 재질 SK5 · SUS304 · 스프링용 스텐레스강(주문생산) · 경도 HRC 44~52 · 표면처리 흑착색 또는 인산 염피막(요청 시 Zn 도금 가능) · 주(1) t는 소재의 두께 · 주(2) *=비규격 제품 · 단위 mm(KS B1336/JIS B2804) · † d2 허용차 0/−0.72·0/−0.81은 원본에 “0,-072”·“0,-081”로 인쇄된 것(소수점 누락)을 정정 표기 이 제품 구매하러 가기 →
