축용 더블링 DS 스파이럴 축용 멈춤링 실물 (클릭하면 확대)

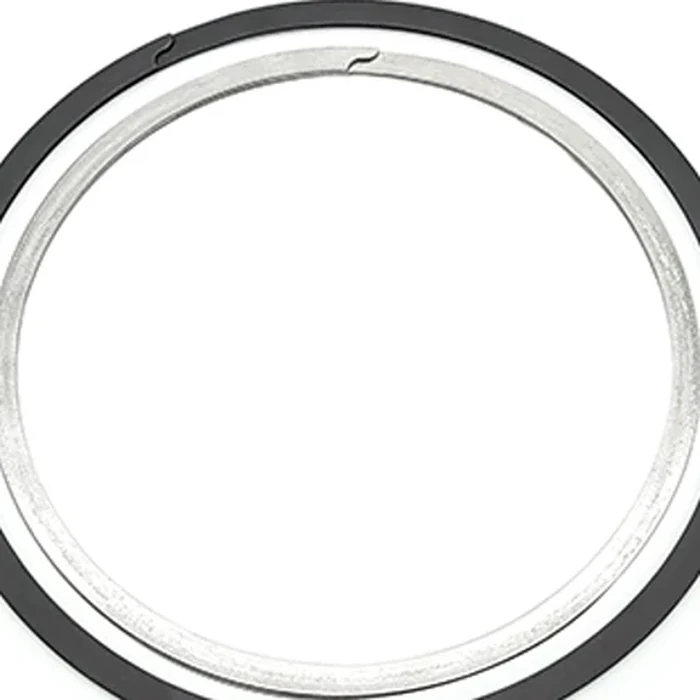

더블링 (DS·DR) 정면 더블링 (DS·DR) 클로즈업
Snap Ring · Spiral Retaining Ring

축용 더블링 (DS)

Spiral Shaft Rings · 축용 미디엄 더블링
유형 2겹 스파이럴 (더블) 규격 DS-12 ~ 280 재질 스프링강 / 스프링용 스텐레스강 생산 전 품목 주문 제작

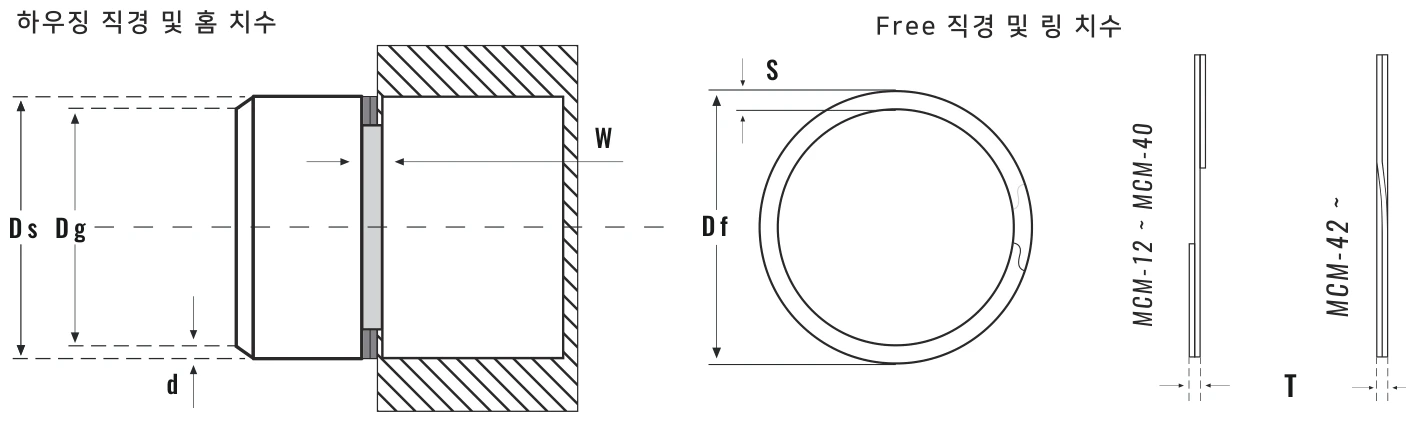

축용 더블링 DS 도면 — Ds 축지름, Dg 홈지름, d 홈깊이, W 홈폭, Df Free직경, T 두께, S 링폭

▲ 축용 미디엄 더블링(DS) 도면 — 하우징·홈 치수(Ds·Dg·W)와 Free 직경·링 치수(Df·T·S)는 아래 규격표와 대응

※ 전 품목 주문 제작 — 납기·수량은 발주 전 미리 문의해 주세요.

축용 더블링 (DS) 규격표 (전 규격 DS-12~280 · 단위 mm · 열 제목 클릭 시 정렬)

🔍
규격 ↕ 멈춤링 (RING SIZE) 적용하는 축 (홈 가공)
Df 기준·허용차 ↕ T 기준·허용차 ↕ S 기준·허용차 ↕ Ds ↕ Dg 기준·허용차 ↕ W 기준·허용차 ↕
DS-1211.17+0.00−0.330.64+0.05−0.051.14+0.08−0.131211.34+0.10−0.000.75+0.08−0.00
DS-1312.15+0.00−0.330.64+0.05−0.051.14+0.08−0.131312.28+0.10−0.000.75+0.08−0.00
DS-1413.15+0.00−0.330.64+0.05−0.051.14+0.08−0.131413.28+0.10−0.000.75+0.08−0.00
DS-1514.15+0.00−0.330.64+0.05−0.051.14+0.08−0.131514.28+0.10−0.000.75+0.08−0.00
DS-1615.98+0.00−0.330.64+0.05−0.051.40+0.08−0.131615.14+0.10−0.000.75+0.08−0.00
DS-1716.98+0.00−0.330.64+0.05−0.051.40+0.08−0.131716.14+0.10−0.000.75+0.08−0.00
DS-1817.98+0.00−0.330.80+0.05−0.051.40+0.08−0.131817.14+0.10−0.000.75+0.08−0.00
DS-1918.98+0.00−0.330.80+0.05−0.051.65+0.08−0.131918.14+0.10−0.000.91+0.08−0.00
DS-2019.98+0.00−0.330.80+0.05−0.051.65+0.08−0.132019.14+0.10−0.000.91+0.08−0.00
DS-2120.82+0.00−0.330.80+0.05−0.051.65+0.08−0.132120.14+0.10−0.000.91+0.08−0.00
DS-2221.82+0.00−0.330.80+0.05−0.051.65+0.08−0.132221.00+0.10−0.000.91+0.08−0.00
DS-2322.80+0.00−0.330.80+0.05−0.051.65+0.08−0.132322.00+0.10−0.000.91+0.08−0.00
DS-2423.64+0.00−0.330.94+0.05−0.051.90+0.08−0.132423.00+0.10−0.000.91+0.08−0.00
DS-2523.61+0.00−0.330.94+0.05−0.051.90+0.08−0.132523.84+0.13−0.001.07+0.08−0.00
DS-2624.61+0.00−0.330.94+0.05−0.051.90+0.08−0.132624.84+0.13−0.001.07+0.08−0.00
DS-2725.61+0.00−0.330.94+0.05−0.051.90+0.08−0.132725.84+0.13−0.001.07+0.08−0.00
DS-2826.61+0.00−0.330.94+0.05−0.051.90+0.08−0.132826.84+0.13−0.001.07+0.08−0.00
DS-2927.61+0.00−0.330.94+0.05−0.051.90+0.08−0.132927.84+0.13−0.001.07+0.08−0.00
DS-3028.45+0.00−0.331.10+0.08−0.082.16+0.08−0.133028.68+0.20−0.001.22+0.08−0.00
DS-3230.43+0.00−0.331.10+0.08−0.082.40+0.08−0.133230.68+0.20−0.001.22+0.08−0.00
DS-3331.42+0.00−0.331.10+0.08−0.082.40+0.08−0.133331.68+0.20−0.001.22+0.08−0.00
DS-3432.43+0.00−0.331.10+0.08−0.082.40+0.08−0.133432.68+0.20−0.001.22+0.08−0.00
DS-3533.32+0.00−0.331.10+0.08−0.082.40+0.08−0.133533.60+0.20−0.001.22+0.08−0.00
DS-3634.32+0.00−0.331.10+0.08−0.082.40+0.08−0.133634.60+0.20−0.001.22+0.08−0.00
DS-3735.36+0.00−0.331.10+0.08−0.082.40+0.08−0.133735.60+0.20−0.001.22+0.08−0.00
DS-3836.32+0.00−0.331.10+0.08−0.082.40+0.08−0.133836.60+0.20−0.001.22+0.08−0.00
DS-3937.25+0.00−0.501.25+0.08−0.082.75+0.08−0.133937.48+0.25−0.001.42+0.10−0.00
DS-4038.18+0.00−0.501.25+0.08−0.082.75+0.08−0.134038.48+0.25−0.001.42+0.10−0.00
DS-4240.10+0.00−0.501.25+0.08−0.082.75+0.08−0.134240.40+0.25−0.001.42+0.10−0.00
DS-4341.04+0.00−0.501.25+0.08−0.083.00+0.08−0.134341.38+0.25−0.001.42+0.10−0.00
DS-4442.06+0.00−0.501.25+0.08−0.083.00+0.08−0.134442.38+0.25−0.001.42+0.10−0.00
DS-4542.95+0.00−0.501.25+0.08−0.083.00+0.08−0.134543.38+0.25−0.001.42+0.10−0.00
DS-4744.85+0.00−0.501.25+0.08−0.083.25+0.08−0.134745.22+0.25−0.001.42+0.10−0.00
DS-4847.82+0.00−0.501.25+0.08−0.083.25+0.08−0.134846.20+0.25−0.001.42+0.10−0.00
DS-5049.62+0.00−0.501.25+0.08−0.083.25+0.08−0.135048.20+0.25−0.001.42+0.10−0.00
DS-5250.62+0.00−0.631.25+0.08−0.083.25+0.08−0.135250.00+0.30−0.001.42+0.10−0.00
DS-5351.62+0.00−0.631.25+0.08−0.083.25+0.08−0.135351.00+0.30−0.001.42+0.10−0.00
DS-5452.62+0.00−0.631.25+0.08−0.083.50+0.08−0.135452.00+0.30−0.001.42+0.10−0.00
DS-5553.62+0.00−0.631.25+0.08−0.083.50+0.08−0.135553.00+0.30−0.001.42+0.10−0.00
DS-5654.43+0.00−0.631.25+0.08−0.083.50+0.08−0.135654.00+0.30−0.001.42+0.10−0.00
DS-5855.43+0.00−0.631.25+0.08−0.083.50+0.08−0.135855.86+0.30−0.001.42+0.10−0.00
DS-5956.43+0.00−0.631.25+0.08−0.083.50+0.08−0.135956.86+0.30−0.001.42+0.10−0.00
DS-6057.43+0.00−0.631.25+0.08−0.083.50+0.08−0.136057.86+0.30−0.001.42+0.10−0.00
DS-6158.36+0.00−0.631.25+0.08−0.083.50+0.08−0.136158.76+0.30−0.001.42+0.10−0.00
DS-6259.30+0.00−0.631.25+0.08−0.083.76+0.08−0.136259.76+0.30−0.001.42+0.10−0.00
DS-6360.30+0.00−0.631.25+0.08−0.083.76+0.08−0.136360.76+0.30−0.001.42+0.10−0.00
DS-6461.25+0.00−0.631.25+0.08−0.083.76+0.08−0.136461.76+0.30−0.001.42+0.10−0.00
DS-6562.20+0.00−0.631.25+0.08−0.083.76+0.08−0.136562.66+0.30−0.001.42+0.10−0.00
DS-6663.16+0.00−0.631.25+0.08−0.083.76+0.08−0.136663.64+0.30−0.001.42+0.10−0.00
DS-6764.16+0.00−0.631.25+0.08−0.083.76+0.08−0.136764.56+0.30−0.001.42+0.10−0.00
DS-6865.08+0.00−0.631.25+0.08−0.084.00+0.08−0.136865.56+0.30−0.001.42+0.10−0.00
DS-6966.06+0.00−0.761.25+0.08−0.084.00+0.08−0.136966.56+0.30−0.001.42+0.10−0.00
DS-7067.08+0.00−0.761.25+0.08−0.084.00+0.08−0.137067.56+0.30−0.001.42+0.10−0.00
DS-7168.04+0.00−0.761.25+0.08−0.084.00+0.08−0.137168.56+0.30−0.001.42+0.10−0.00
DS-7269.00+0.00−0.761.25+0.08−0.084.27+0.10−0.157269.50+0.30−0.001.42+0.10−0.00
DS-7571.93+0.00−0.761.25+0.08−0.084.27+0.10−0.157572.46+0.30−0.001.42+0.10−0.00
DS-7874.84+0.00−0.761.55+0.08−0.084.27+0.10−0.157875.40+0.30−0.001.73+0.13−0.00
DS-8076.80+0.00−0.761.55+0.08−0.084.52+0.10−0.158077.36+0.30−0.001.73+0.13−0.00
DS-8278.72+0.00−0.761.55+0.08−0.084.52+0.10−0.158279.30+0.30−0.001.73+0.13−0.00
DS-8581.62+0.00−0.761.55+0.08−0.084.77+0.10−0.158582.20+0.30−0.001.73+0.13−0.00
DS-8884.53+0.00−1.001.55+0.08−0.084.77+0.10−0.158885.16+0.30−0.001.73+0.13−0.00
DS-9086.53+0.00−1.001.55+0.08−0.085.03+0.10−0.159087.06+0.30−0.001.73+0.13−0.00
DS-9591.37+0.00−1.001.55+0.08−0.085.03+0.10−0.159592.00+0.30−0.001.73+0.13−0.00
DS-10096.10+0.00−1.001.55+0.08−0.085.28+0.10−0.1510096.86+0.30−0.001.73+0.13−0.00
DS-105100.94+0.00−1.001.55+0.08−0.085.53+0.10−0.15105101.70+0.30−0.001.73+0.13−0.00
DS-110105.75+0.00−1.001.55+0.10−0.105.80+0.10−0.15110106.54+0.30−0.001.73+0.13−0.00
DS-115110.59+0.00−1.001.83+0.10−0.106.05+0.10−0.15115111.40+0.30−0.002.00+0.15−0.00
DS-120115.49+0.00−1.001.83+0.10−0.106.35+0.10−0.15120116.30+0.30−0.002.00+0.15−0.00
DS-125120.44+0.00−1.001.83+0.10−0.106.35+0.10−0.15125121.30+0.30−0.002.00+0.15−0.00
DS-130125.34+0.00−1.301.83+0.10−0.106.35+0.10−0.15130126.20+0.35−0.002.00+0.15−0.00
DS-135130.20+0.00−1.301.83+0.10−0.106.35+0.10−0.15135131.0+0.35−0.002.00+0.15−0.00
DS-140135.14+0.00−1.301.83+0.10−0.106.35+0.10−0.15140136.08+0.35−0.002.00+0.15−0.00
DS-145140.00+0.00−1.301.83+0.10−0.106.35+0.10−0.15145141.00+0.35−0.002.00+0.15−0.00
DS-150145.00+0.00−1.522.18+0.10−0.106.35+0.10−0.20150146.00+0.40−0.002.40+0.15−0.00
DS-155149.33+0.00−1.522.18+0.10−0.107.92+0.10−0.20155150.40+0.40−0.002.40+0.15−0.00
DS-160154.31+0.00−1.522.18+0.10−0.107.92+0.10−0.20160155.40+0.40−0.002.40+0.15−0.00
DS-165159.23+0.00−1.522.18+0.10−0.107.92+0.10−0.20165160.40+0.40−0.002.40+0.15−0.00
DS-170164.00+0.00−1.522.18+0.10−0.107.92+0.10−0.20170165.20+0.40−0.002.40+0.15−0.00
DS-175169.00+0.00−1.522.18+0.10−0.107.92+0.10−0.20175170.20+0.40−0.002.40+0.15−0.00
DS-180173.78+0.00−1.522.18+0.10−0.107.92+0.10−0.20180175.00+0.40−0.002.40+0.15−0.00
DS-185178.70+0.00−1.782.18+0.10−0.107.92+0.10−0.20185180.00+0.40−0.002.40+0.15−0.00
DS-190183.70+0.00−1.782.18+0.10−0.107.92+0.10−0.20190185.00+0.40−0.002.40+0.15−0.00
DS-195188.43+0.00−1.782.18+0.10−0.107.92+0.10−0.20195189.80+0.40−0.002.40+0.15−0.00
DS-200193.43+0.00−1.782.18+0.10−0.107.92+0.10−0.20200194.80+0.40−0.002.40+0.15−0.00
DS-210202.93+0.00−1.782.18+0.10−0.109.52+0.10−0.20210204.40+0.40−0.002.40+0.15−0.00
DS-220212.65+0.00−1.782.18+0.10−0.109.52+0.10−0.20220214.20+0.40−0.002.40+0.15−0.00
DS-230222.60+0.00−1.782.18+0.10−0.109.52+0.10−0.20230224.20+0.40−0.002.40+0.15−0.00
DS-240232.32+0.00−1.782.18+0.10−0.109.52+0.10−0.20240234.20+0.40−0.002.40+0.15−0.00
DS-250241.83+0.00−1.782.18+0.10−0.109.52+0.10−0.20250243.60+0.40−0.002.40+0.15−0.00
DS-260251.57+0.00−1.782.18+0.10−0.109.52+0.10−0.20260253.40+0.40−0.002.40+0.15−0.00
DS-270261.30+0.00−1.782.18+0.10−0.109.52+0.10−0.20270263.20+0.40−0.002.40+0.15−0.00
DS-280271.04+0.00−1.782.18+0.10−0.109.52+0.10−0.20280273.00+0.40−0.002.40+0.15−0.00
검색 결과가 없습니다. 다른 규격·치수로 검색하거나 문의해 주세요.
※ 재질 스프링강 / 스프링용 스텐레스강 · 전 품목 주문 제작(발주 전 문의) · 단위 mm 이 제품 구매하러 가기 →
