구멍용 C형 멈춤링 RTW 실물 (클릭하면 확대)

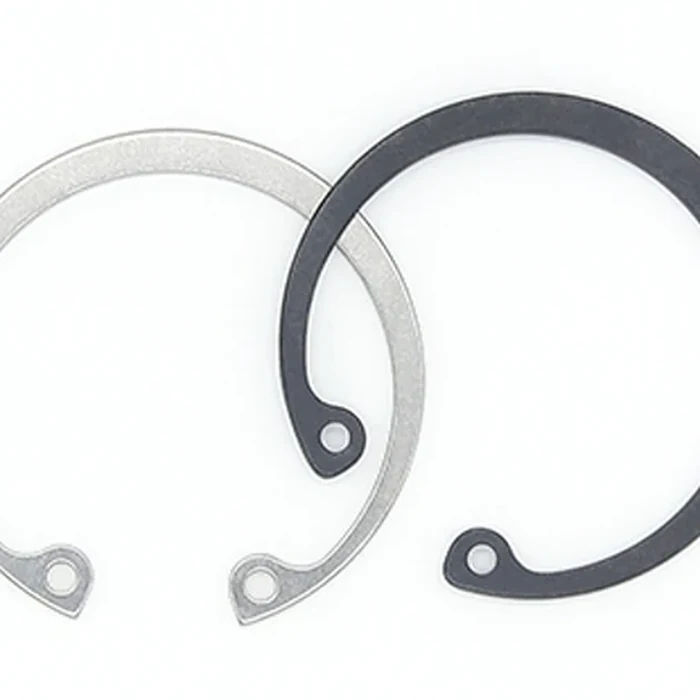

구멍용 C형 멈춤링 (RTW) 정면 구멍용 C형 멈춤링 (RTW) 다른 각도 구멍용 C형 멈춤링 (RTW) 클로즈업
Snap Ring · Retaining Ring

구멍용 C형 멈춤링 (RTW)

Internal Retaining Ring for Bore
유형 구멍용 C형 (Internal) 규격 RTW-6 ~ 300 재질 SK5 / SUS304 경도 HRC 44~52 표면처리 흑착 / 인산피막 표준 KS B1336 · JIS B2804

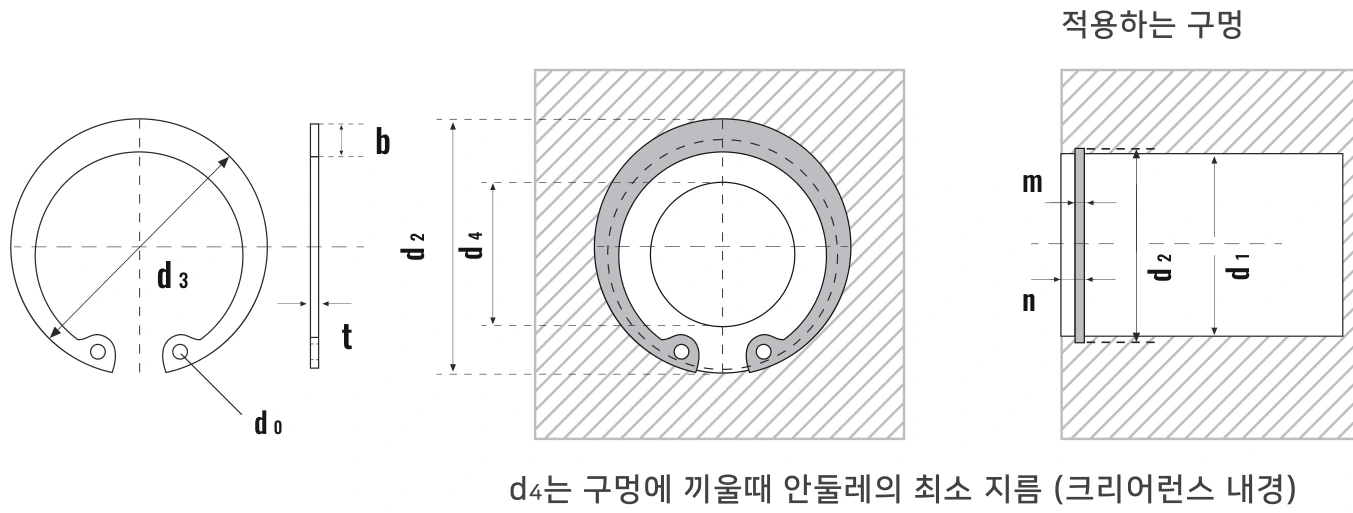

구멍용 C형 멈춤링 RTW 도면 — d1 적용구멍경, d2 홈지름, d3 멈춤링 외경, t 두께, m 홈폭, d4 최소장착내경

▲ 구멍용 C형 멈춤링 도면 — 치수 기호(d1·d2·d3·t·m·d4)는 아래 규격표와 대응 · KS B1336 / JIS B2804

※ 원하는 규격이 표에 없으면 비규격 제작 문의가 가능합니다.

규격표 (전 규격 RTW-6~300 · 단위 mm · 열 제목 클릭 시 정렬)

🔍
규격 ↕ 멈춤링 d4 ↕ 적용하는 구멍 (홈 가공)
d3 기준·허용차 ↕ t 기준·허용차 ↕ b 약 ↕ a 약 ↕ d0 최소 ↕ d1 ↕ d2 기준·허용차 ↕ m 기준·허용차 ↕ n 최소 ↕
RTW-6 *6.7±0.180.4±0.030.71.60.72.566.25+0.0400.5+0.100.5
RTW-7 *7.7±0.180.4±0.030.81.70.8377.3+0.0600.5+0.100.5
RTW-8 *8.8±0.180.4±0.040.91.70.83.588.4+0.0600.5+0.100.6
RTW-9 *9.8±0.180.6±0.041.12.21499.4+0.0600.7+0.100.6
RTW-1010.7±0.181±0.051.52.8141010.4+0.1101.15+0.1400.6
RTW-1111.8±0.181±0.051.53141111.4+0.1101.15+0.1400.6
RTW-1213±0.181±0.051.73.1151212.5+0.1101.15+0.1400.8
RTW-1314.1±0.181±0.051.73.11.261313.6+0.1101.15+0.1400.9
RTW-1415.1±0.181±0.051.93.61.271414.6+0.1101.15+0.1400.9
RTW-1516.2±0.181±0.051.93.61.581515.7+0.1101.15+0.1401.1
RTW-1617.3±0.181±0.051.93.71.581616.8+0.1101.15+0.1401.2
RTW-1718.3±0.21±0.051.93.81.791717.8+0.1101.15+0.1401.2
RTW-1819.5±0.21±0.052.441.7101819+0.2101.15+0.1401.5
RTW-1920.5±0.21±0.052.541.7111920+0.2101.15+0.1401.5
RTW-2021.5±0.21±0.052.541.7122021+0.2101.15+0.1401.5
RTW-2122.5±0.21±0.052.54.11.7122122+0.2101.15+0.1401.5
RTW-2223.5±0.21±0.052.54.12132223+0.2101.15+0.1401.8
RTW-2425.9±0.21.2±0.062.54.32152425.2+0.2101.35+0.1401.8
RTW-2526.9±0.21.2±0.0634.42162526.2+0.2101.35+0.1401.8
RTW-2627.9±0.21.2±0.0634.62162627.2+0.2101.35+0.1402.1
RTW-2830.1±0.251.2±0.0634.62182829.4+0.2101.35+0.1402.1
RTW-3032.1±0.251.2±0.0634.72203031.4+0.2501.35+0.1402.6
RTW-3234.4±0.251.2±0.063.55.22213233.7+0.2501.35+0.1402.6
RTW-3436.5±0.251.5±0.063.55.22233435.7+0.2501.65+0.1403.0
RTW-3537.8±0.251.5±0.063.55.22243537+0.2501.65+0.1403.0
RTW-3638.8±0.251.5±0.063.55.22253638+0.2501.65+0.1403.0
RTW-3739.8±0.251.5±0.063.55.22263739+0.2501.65+0.1403.3
RTW-3840.8±0.251.5±0.0645.32273840+0.2501.65+0.1403.8
RTW-4043.5±0.41.5±0.0745.72.5284042.5+0.2501.9+0.1403.8
RTW-4245.5±0.41.5±0.0745.82.5304244.5+0.2501.9+0.1403.8
RTW-4548.5±0.41.5±0.074.55.92.5334547.5+0.2501.9+0.1403.8
RTW-4649.7±0.451.75±0.074.56.12.5334648.5+0.2501.9+0.1403.8
RTW-4750.5±0.451.75±0.074.56.12.5344749.5+0.301.9+0.1404.5
RTW-4851.5±0.451.75±0.074.56.22.5354850.5+0.301.9+0.1404.5
RTW-5054.2±0.451.75±0.074.56.52.5375053+0.302.2+0.1404.5
RTW-5256.2±0.451.75±0.075.16.52.5395255+0.302.2+0.1404.5
RTW-5559.2±0.451.75±0.075.16.52.5415558+0.302.2+0.1404.5
RTW-5660.2±0.451.75±0.075.16.62.5425659+0.302.2+0.1404.5
RTW-5862.2±0.452±0.075.16.82.5445861+0.302.2+0.1404.5
RTW-6064.2±0.452±0.075.56.82.5466063+0.302.2+0.1404.5
RTW-6266.2±0.452±0.075.56.92.5486265+0.302.2+0.1404.5
RTW-6367.2±0.452.5±0.075.56.92.5496366+0.302.2+0.1404.5
RTW-6569.2±0.452.5±0.085.572.5506568+0.302.7+0.1404.5
RTW-6872.5±0.452.5±0.0867.42.5536871+0.302.2+0.1404.5
RTW-7074.5±0.452.5±0.0867.42.5557073+0.302.2+0.1404.5
RTW-7276.5±0.452.5±0.086.67.42.5577275+0.302.2+0.1404.5
RTW-7579.5±0.452.5±0.086.67.82.5607578+0.302.7+0.1404.5
RTW-7882.5±0.552.5±0.086.682.5627881+0.3502.7+0.1804.5
RTW-8085.5±0.552.5±0.08782.5648083.5+0.3502.7+0.1804.5
RTW-8287.5±0.552.5±0.08783668285.5+0.3502.7+0.1804.5
RTW-8590.5±0.553±0.09783698588.5+0.3502.7+0.1804.5
RTW-88 *93.5±0.553±0.097.68.23718891.5+0.3502.7+0.1804.5
RTW-9095.5±0.553±0.097.68.33739093.5+0.3502.7+0.1805.3
RTW-9297.5±0.553±0.0988.33749295.5+0.3502.7+0.1805.3
RTW-95100.5±0.553±0.0988.53779598.5+0.3503.2+0.1805.3
RTW-98 *103.5±0.553±0.098.38.738098101.5+0.3503.2+0.1805.3
RTW-100105.5±0.553±0.098.38.8382100103.5+0.3503.2+0.1805.3
RTW-102 *108±0.554±0.098.99383102106+0.5403.2+0.1805.3
RTW-105112±0.554±0.098.99.1386105109+0.5403.2+0.1805.3
RTW-108115±0.554±0.098.99.5387108112+0.5404.2+0.1806
RTW-110117±0.554±0.098.910.2389110114+0.5404.2+0.1806
RTW-112 *119±0.554±0.098.910.2390112116+0.5404.2+0.1806
RTW-115122±0.654±0.099.510.2397115119+0.5404.2+0.1806
RTW-120127±0.654±0.099.510.7398120124+0.6304.2+0.1806
RTW-125132±0.654±0.091010.73.5103125129+0.6304.2+0.206
RTW-130137+1.26−0.634±0.091010.73.5108130134+0.6304.2+0.206
RTW-135142+1.26−0.634±0.0910.8113.5113135139+0.6304.2+0.206
RTW-140147+1.26−0.634±0.0910.8113.5118140144+0.6304.2+0.206
RTW-145152+1.26−0.634±0.0910.8113.5123145149+0.6304.2+0.207.5
RTW-150158+1.26−0.634±0.0911.511.83.5125150155+0.6304.2+0.207.5
RTW-155164+1.26−0.634±0.0911.511.83.5130155160+0.6304.2+0.207.5
RTW-160169+1.26−0.634±0.091212.63.5134160165+0.6304.2+0.207.5
RTW-165174.5+1.26−0.634±0.091212.73.5139165170+0.6304.2+0.207.5
RTW-170179.5+1.26−0.634±0.0912−3.5145170175+0.6304.2+0.207.5
RTW-175184.5+1.44−0.724±0.0912.5−3.5149175180+0.6304.2+0.207.5
RTW-180189.5+1.44−0.724±0.0913−3.5153180185+0.7204.2+0.207.5
RTW-185194.5+1.44−0.724±0.0913.5−4157185190+0.7204.2+0.207.5
RTW-190199.5+1.44−0.724±0.0913.5−4162190195+0.7204.2+0.207.5
RTW-195204.5+1.44−0.724±0.0913.5−4167195200+0.7204.2+0.207.5
RTW-200209.5+1.44−0.724±0.0914−4171200205+0.7205.2+0.2509
RTW-210222+1.44−0.725±0.1514−4181210216+0.7205.2+0.2509
RTW-220232+1.44−0.725±0.1514−4191220226+0.7205.2+0.2509
RTW-230242+1.44−0.725±0.1514−4201230236+0.7205.2+0.2509
RTW-240252+1.44−0.725±0.1514−4211240246+0.7205.2+0.2509
RTW-250262+1.44−0.725±0.1514−4221250256+0.8105.2+0.25012
RTW-260275+1.62−0.815±0.1516−4227260268+0.8105.2+0.25012
RTW-270285+1.62−0.815±0.1516−4237270278+0.8105.2+0.25012
RTW-280295+1.62−0.815±0.1516−4247280288+0.8105.2+0.25012
RTW-290305+1.62−0.815±0.1516−4257290298+0.8105.2+0.25012
RTW-300315+1.62−0.815±0.1516−4267300308+0.8105.2+0.25012
검색 결과가 없습니다. 다른 규격·치수로 검색하거나 문의해 주세요.
※ 재질 SK5 · SUS304 · 스프링용 스텐레스강(주문생산) · 경도 HRC 44~52 · 표면처리 흑착색 또는 인산 염피막(요청 시 Zn 도금 가능) · 주(1) t는 소재의 두께 · 주(2) *=비규격 제품 · 단위 mm(KS B1336/JIS B2804) 이 제품 구매하러 가기 →
