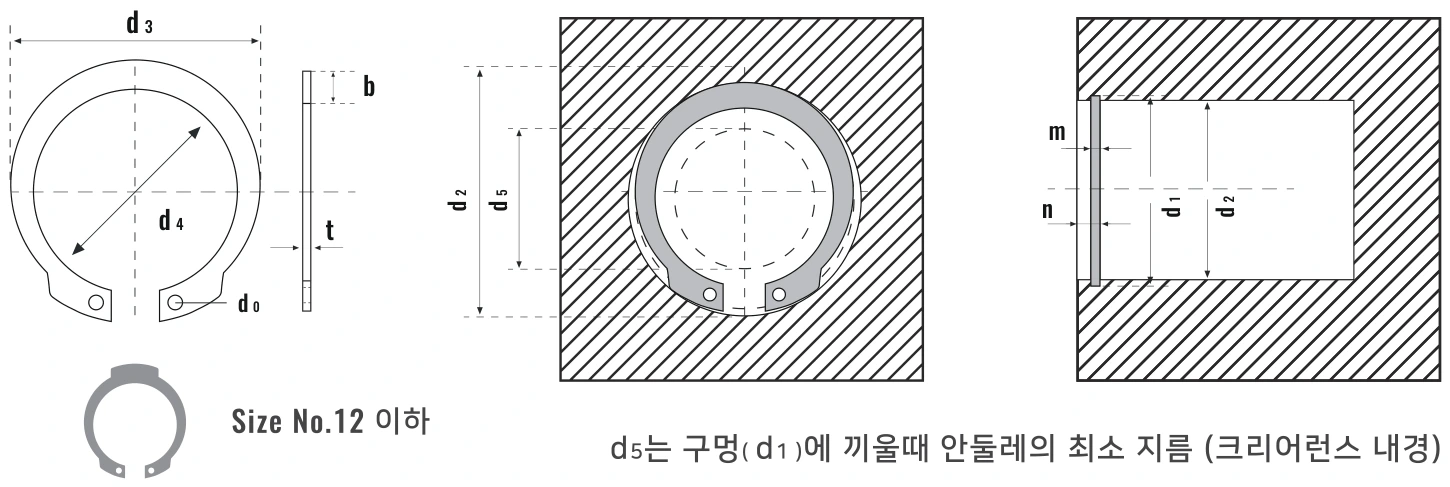

▲ 구멍용 S.R겸용 멈춤링 도면 — 치수 기호(d1·d2·d3·d4·d5·t·m)는 아래 규격표와 대응 · d5는 구멍(d1)에 끼울때 안둘레의 최소 지름(크리어런스 내경)
※ * 표시는 비규격 제품 — 이용하실 때는 미리 문의해 주세요.
| 규격 ↕ | 멈춤링 | d5 ↕ | 적용하는 구멍 (홈 가공) | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| d3 기준·허용차 ↕ | t 기준·허용차 ↕ | d4 약 ↕ | h 약 ↕ | d0 최소 ↕ | 보통 허용차 ↕ | d1 ↕ | d2 기준·허용차 ↕ | m 기준·허용차 ↕ | n 최소 ↕ | ||
| IRTW-10 | 11.1±0.18 | 1±0.05 | 7.7 | 1.7 | 0.9 | ±0.3 | 5.9 | 10 | 10.4+0.110 | 1.15+0.140 | 1.5 |
| IRTW-11 | 12.2±0.18 | 1±0.05 | 8.6 | 1.8 | 0.9 | ±0.3 | 6.6 | 11 | 11.4+0.110 | 1.15+0.140 | 1.5 |
| IRTW-12 | 13.3±0.18 | 1±0.05 | 9.7 | 1.8 | 0.9 | ±0.3 | 7.6 | 12 | 12.5+0.110 | 1.15+0.140 | 1.5 |
| IRTW-13 | 14.1±0.18 | 1±0.05 | 10.9 | 1.6 | 0.9 | ±0.3 | 9.0 | 13 | 13.6+0.110 | 1.15+0.140 | 1.5 |
| IRTW-14 | 15.1±0.18 | 1±0.05 | 11.7 | 1.7 | 0.9 | ±0.3 | 9.8 | 14 | 14.6+0.110 | 1.15+0.140 | 1.5 |
| IRTW-15 | 16.2±0.18 | 1±0.05 | 12.6 | 1.8 | 0.9 | ±0.3 | 10.6 | 15 | 15.7+0.110 | 1.15+0.140 | 1.5 |
| IRTW-16 | 17.3±0.18 | 1±0.05 | 13.5 | 1.9 | 0.9 | ±0.3 | 11.4 | 16 | 16.8+0.110 | 1.15+0.140 | 1.5 |
| IRTW-17 | 18.3±0.2 | 1±0.05 | 14.3 | 2.0 | 1.2 | ±0.3 | 12.2 | 17 | 17.8+0.110 | 1.15+0.140 | 1.5 |
| IRTW-18 | 19.5±0.2 | 1±0.05 | 15.3 | 2.1 | 1 | ±0.3 | 13.0 | 18 | 19+0.210 | 1.15+0.140 | 1.5 |
| IRTW-19 | 20.5±0.2 | 1±0.05 | 16.1 | 2.2 | 1 | ±0.3 | 13.8 | 19 | 20+0.210 | 1.15+0.140 | 1.5 |
| IRTW-20 | 21.5±0.2 | 1±0.05 | 16.9 | 2.3 | 1 | ±0.3 | 14.5 | 20 | 21+0.210 | 1.15+0.140 | 1.5 |
| IRTW-21 | 22.5±0.2 | 1±0.05 | 17.7 | 2.4 | 1.2 | ±0.4 | 15 | 21 | 22+0.210 | 1.15+0.140 | 1.5 |
| IRTW-22 | 23.5±0.2 | 1±0.05 | 18.7 | 2.4 | 1.2 | ±0.4 | 16 | 22 | 23+0.210 | 1.15+0.140 | 1.5 |
| IRTW-24 | 25.9±0.2 | 1.2±0.06 | 20.7 | 2.6 | 1.2 | ±0.4 | 17.5 | 24 | 25.2+0.210 | 1.35+0.140 | 1.5 |
| IRTW-25 | 26.9±0.2 | 1.2±0.06 | 21.5 | 2.7 | 1.2 | ±0.4 | 18.5 | 25 | 26.2+0.210 | 1.35+0.140 | 1.5 |
| IRTW-26 | 27.9±0.2 | 1.2±0.06 | 22.3 | 2.8 | 1.2 | ±0.4 | 19 | 26 | 27.2+0.210 | 1.35+0.140 | 1.5 |
| IRTW-28 | 30.1±0.25 | 1.2±0.06 | 24.1 | 3.0 | 1.4 | ±0.4 | 20.5 | 28 | 29.4+0.210 | 1.35+0.140 | 1.5 |
| IRTW-30 | 32.1±0.25 | 1.2±0.06 | 25.7 | 3.2 | 1.4 | ±0.4 | 22.5 | 30 | 31.4+0.250 | 1.35+0.140 | 1.5 |
| IRTW-32 | 34.4±0.25 | 1.2±0.06 | 27.4 | 3.5 | 1.4 | ±0.4 | 23.5 | 32 | 33.7+0.250 | 1.35+0.140 | 1.5 |
| IRTW-34 | 36.5±0.25 | 1.5±0.06 | 29.1 | 3.7 | 1.6 | ±0.4 | 25 | 34 | 35.7+0.250 | 1.65+0.140 | 1.5 |
| IRTW-35 | 37.5±0.25 | 1.5±0.06 | 30 | 3.9 | 1.6 | ±0.4 | 26 | 35 | 37+0.250 | 1.65+0.140 | 1.5 |
| IRTW-36 | 38.8±0.25 | 1.5±0.06 | 30.8 | 4.0 | 1.6 | ±0.4 | 26.5 | 36 | 38+0.250 | 1.65+0.140 | 1.5 |
| IRTW-37 | 39.8±0.25 | 1.5±0.06 | 31.6 | 4.1 | 1.6 | ±0.4 | 27.5 | 37 | 39+0.250 | 1.65+0.140 | 1.5 |
| IRTW-38 | 40.8±0.25 | 1.5±0.06 | 32.4 | 4.2 | 1.6 | ±0.4 | 28 | 38 | 40+0.250 | 1.65+0.140 | 1.5 |
| IRTW-40 | 43.5±0.4 | 1.75±0.07 | 34.7 | 4.4 | 2 | ±0.4 | 30 | 40 | 42.5+0.250 | 1.9+0.140 | 2 |
| IRTW-42 | 45.5±0.4 | 1.75±0.07 | 36.3 | 4.6 | 2 | ±0.5 | 31 | 42 | 44.5+0.250 | 1.9+0.140 | 2 |
| IRTW-45 | 48.5±0.4 | 1.75±0.07 | 38.9 | 4.8 | 2 | ±0.5 | 33 | 45 | 47.5+0.250 | 1.9+0.140 | 2 |
| IRTW-47 | 50.5±0.4 | 1.75±0.07 | 40.7 | 4.9 | 2 | ±0.5 | 35 | 47 | 49.5+0.250 | 1.9+0.140 | 2 |
| IRTW-48 | 51.5±0.4 | 1.75±0.07 | 41.5 | 5.0 | 2 | ±0.5 | 36 | 48 | 50.5+0.30 | 1.9+0.140 | 2 |
| IRTW-50 | 54.2±0.45 | 1.75±0.07 | 44 | 5.1 | 2.2 | ±0.5 | 38 | 50 | 53+0.30 | 2.2+0.140 | 2 |
| IRTW-52 | 56.2±0.45 | 2±0.07 | 45.8 | 5.2 | 2.2 | ±0.5 | 40 | 52 | 55+0.30 | 2.2+0.140 | 2 |
| IRTW-55 | 59.2±0.45 | 2±0.07 | 48 | 5.6 | 2.2 | ±0.5 | 42 | 55 | 58+0.30 | 2.2+0.140 | 2 |
| IRTW-56 | 60.2±0.45 | 2±0.07 | 48.8 | 5.7 | 2.5 | ±0.5 | 43 | 56 | 59+0.30 | 2.2+0.140 | 2 |
| IRTW-58 | 62.2±0.45 | 2±0.07 | 50.4 | 5.9 | 2.5 | ±0.5 | 44 | 58 | 61+0.30 | 2.2+0.140 | 2 |
| IRTW-60 | 64.2±0.45 | 2±0.07 | 52 | 6.1 | 2.5 | ±0.5 | 46 | 60 | 63+0.30 | 2.2+0.140 | 2 |
| IRTW-62 | 66.2±0.45 | 2±0.07 | 53.6 | 6.3 | 2.8 | ±0.5 | 47 | 62 | 65+0.30 | 2.2+0.140 | 2 |
| IRTW-63 | 67.2±0.45 | 2±0.07 | 54.4 | 6.4 | 2.8 | ±0.5 | 48 | 63 | 66+0.30 | 2.2+0.140 | 2 |
| IRTW-65 | 69.2±0.45 | 2.5±0.08 | 55.8 | 6.7 | 3.2 | ±0.5 | 49 | 65 | 68+0.30 | 2.7+0.140 | 2.5 |
| IRTW-68 | 72.5±0.45 | 2.5±0.08 | 58.5 | 7.0 | 3.2 | ±0.5 | 52 | 68 | 71+0.30 | 2.7+0.140 | 2.5 |
| IRTW-70 | 74.5±0.45 | 2.5±0.08 | 60.1 | 7.2 | 3.2 | ±0.5 | 53 | 70 | 73+0.30 | 2.7+0.140 | 2.5 |
| IRTW-72 | 76.5±0.45 | 2.5±0.08 | 61.7 | 7.4 | 3.2 | ±0.7 | 55 | 72 | 75+0.30 | 2.7+0.140 | 2.5 |
| IRTW-75 | 79.5±0.45 | 2.5±0.08 | 63.9 | 7.8 | 3.2 | ±0.7 | 57 | 75 | 78+0.30 | 2.7+0.140 | 2.5 |
| IRTW-78 | 82.5±0.55 | 2.5±0.08 | 66.3 | 8.1 | 3.2 | ±0.7 | 59 | 78 | 81+0.30 | 2.7+0.140 | 2.5 |
| IRTW-80 | 85.5±0.55 | 2.5±0.08 | 68.9 | 8.3 | 3.2 | ±0.7 | 61 | 80 | 83.5+0.30 | 2.7+0.140 | 2.5 |
| IRTW-82 * | 87.5±0.55 | 2.5±0.08 | 70.5 | 8.5 | 3.2 | ±0.7 | 62 | 82 | 85.5+0.30 | 2.7+0.140 | 2.5 |
| IRTW-85 | 90.5±0.55 | 3±0.09 | 72.7 | 8.9 | 4 | ±0.7 | 64 | 85 | 88.5+0.350 | 3.2+0.180 | 3 |
| IRTW-88 * | 93.5±0.55 | 3±0.09 | 75.1 | 9.2 | 4 | ±0.7 | 67 | 88 | 91.5+0.350 | 3.2+0.180 | 3 |
| IRTW-90 | 95.5±0.55 | 3±0.09 | 76.7 | 9.4 | 4 | ±0.7 | 68 | 90 | 93.5+0.350 | 3.2+0.180 | 3 |
| IRTW-92 * | 97.5±0.55 | 3±0.09 | 78.3 | 9.6 | 4 | ±0.7 | 70 | 92 | 95.5+0.350 | 3.2+0.180 | 3 |
| IRTW-95 * | 100.5±0.55 | 3±0.09 | 80.5 | 10 | 4 | ±0.7 | 72 | 95 | 98.5+0.350 | 3.2+0.180 | 3 |
| IRTW-98 * | 103.5±0.55 | 3±0.09 | 82.9 | 10.3 | 4 | ±0.7 | 75 | 98 | 101.5+0.350 | 3.2+0.180 | 3 |
| IRTW-100 | 105.5±0.55 | 3±0.09 | 84.5 | 10.5 | 4 | ±0.7 | 76 | 100 | 103.5+0.350 | 3.2+0.180 | 3 |
