구멍용 더블링 DR 스파이럴 구멍용 멈춤링 실물 (클릭하면 확대)
더블링 (DS·DR) 정면 더블링 (DS·DR) 클로즈업
Snap Ring · Spiral Retaining Ring

구멍용 더블링 (DR)

Spiral Housing Rings · 구멍용 미디엄 더블링
유형 2겹 스파이럴 (더블) 규격 DR-12 ~ 280 재질 스프링강 / 스프링용 스텐레스강 생산 전 품목 주문 제작

※ 전 품목 주문 제작 — 납기·수량은 발주 전 미리 문의해 주세요.

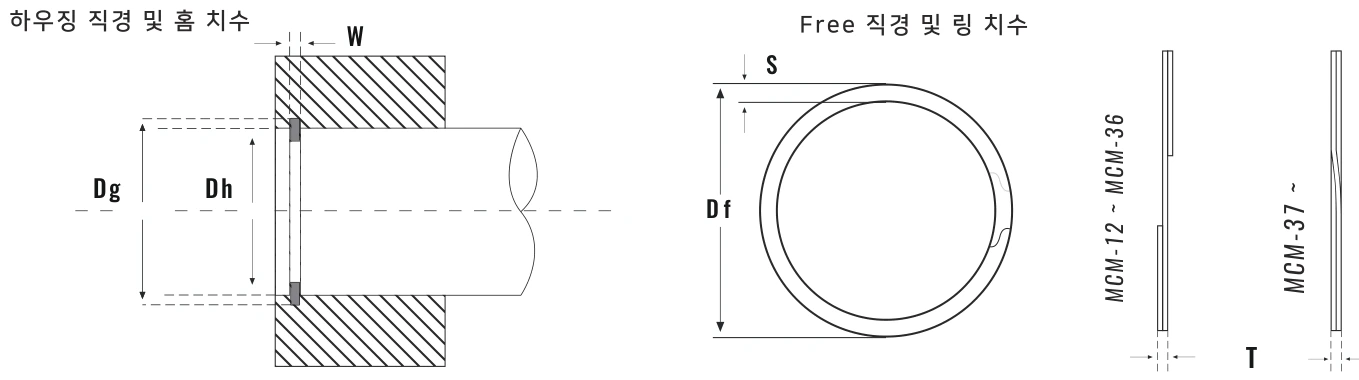

구멍용 더블링 DR 도면 — Dh 구멍지름, Dg 홈지름, W 홈폭, Df Free직경, T 두께, S 링폭

▲ 구멍용 미디엄 더블링(DR) 도면 — 하우징·홈 치수(Dh·Dg·W)와 Free 직경·링 치수(Df·T·S)는 아래 규격표와 대응

구멍용 더블링 (DR) 규격표 (전 규격 DR-12~280 · 단위 mm · 열 제목 클릭 시 정렬)

🔍
규격 ↕ 멈춤링 (RING SIZE) 적용하는 구멍 (홈 가공)
Df 기준·허용차 ↕ T 기준·허용차 ↕ S 기준·허용차 ↕ Dh ↕ Dg 기준·허용차 ↕ W 기준·허용차 ↕
DR-1212.78+0.33−0.000.64+0.05−0.051.14+0.08−0.131212.66+0.00−0.100.75+0.08−0.00
DR-1313.84+0.33−0.000.64+0.05−0.051.14+0.08−0.131313.72+0.00−0.100.75+0.08−0.00
DR-1414.85+0.33−0.000.64+0.05−0.051.14+0.08−0.131414.72+0.00−0.100.75+0.08−0.00
DR-1515.85+0.33−0.000.64+0.05−0.051.14+0.08−0.131515.72+0.00−0.100.75+0.08−0.00
DR-1616.85+0.33−0.000.64+0.05−0.051.40+0.08−0.131616.72+0.00−0.100.75+0.08−0.00
DR-1717.85+0.33−0.000.64+0.05−0.051.40+0.08−0.131717.72+0.00−0.100.75+0.08−0.00
DR-1816.85+0.33−0.000.80+0.05−0.051.40+0.08−0.131818.72+0.00−0.100.75+0.08−0.00
DR-1920.00+0.33−0.000.80+0.05−0.051.65+0.08−0.131919.86+0.00−0.150.91+0.08−0.00
DR-2021.10+0.33−0.000.80+0.05−0.051.65+0.08−0.132020.86+0.00−0.150.91+0.08−0.00
DR-2122.04+0.33−0.000.80+0.05−0.051.65+0.08−0.132121.86+0.00−0.150.91+0.08−0.00
DR-2223.18+0.33−0.000.80+0.05−0.051.65+0.08−0.132223.00+0.00−0.150.91+0.08−0.00
DR-2324.19+0.33−0.000.80+0.05−0.051.65+0.08−0.132324.00+0.00−0.150.91+0.08−0.00
DR-2425.20+0.33−0.000.94+0.05−0.051.90+0.08−0.132425.00+0.00−0.150.91+0.08−0.00
DR-2526.45+0.33−0.000.94+0.05−0.051.90+0.08−0.132526.26+0.00−0.151.07+0.08−0.00
DR-2627.50+0.33−0.000.94+0.05−0.051.90+0.08−0.132627.26+0.00−0.151.07+0.08−0.00
DR-2829.50+0.33−0.000.94+0.05−0.051.90+0.08−0.132829.26+0.00−0.151.07+0.08−0.00
DR-2930.50+0.33−0.000.94+0.05−0.051.90+0.08−0.132930.26+0.00−0.151.07+0.08−0.00
DR-3031.55+0.40−0.000.94+0.08−0.081.90+0.08−0.133031.32+0.00−0.201.22+0.08−0.00
DR-3233.57+0.40−0.001.10+0.08−0.082.16+0.08−0.133233.32+0.00−0.201.22+0.08−0.00
DR-3334.57+0.40−0.001.10+0.08−0.082.40+0.08−0.133334.32+0.00−0.201.22+0.08−0.00
DR-3435.57+0.40−0.001.10+0.08−0.082.40+0.08−0.133435.32+0.00−0.201.22+0.08−0.00
DR-3536.70+0.40−0.001.10+0.08−0.082.40+0.08−0.133536.42+0.00−0.201.22+0.08−0.00
DR-3637.70+0.40−0.001.10+0.08−0.082.40+0.08−0.133637.42+0.00−0.201.22+0.08−0.00
DR-3738.70+0.40−0.001.10+0.08−0.082.40+0.08−0.133738.42+0.00−0.201.22+0.08−0.00
DR-3839.70+0.40−0.001.10+0.08−0.082.40+0.08−0.133839.42+0.00−0.201.22+0.08−0.00
DR-3940.90+0.50−0.001.10+0.08−0.082.40+0.08−0.133940.60+0.00−0.251.42+0.10−0.00
DR-4041.90+0.50−0.001.25+0.08−0.082.75+0.08−0.134041.60+0.00−0.251.42+0.10−0.00
DR-4142.92+0.50−0.001.25+0.08−0.082.75+0.08−0.134142.60+0.00−0.251.42+0.10−0.00
DR-4243.93+0.50−0.001.25+0.08−0.082.75+0.08−0.134243.60+0.00−0.251.42+0.10−0.00
DR-4345.00+0.50−0.001.25+0.08−0.083.00+0.08−0.134344.72+0.00−0.251.42+0.10−0.00
DR-4446.02+0.50−0.001.25+0.08−0.083.00+0.08−0.134445.72+0.00−0.251.42+0.10−0.00
DR-4547.08+0.50−0.001.25+0.08−0.083.00+0.08−0.134546.72+0.00−0.251.42+0.10−0.00
DR-4749.18+0.50−0.001.25+0.08−0.083.25+0.08−0.134748.80+0.00−0.251.42+0.10−0.00
DR-4850.18+0.50−0.001.25+0.08−0.083.25+0.08−0.134849.80+0.00−0.251.42+0.10−0.00
DR-5052.30+0.50−0.001.25+0.08−0.083.25+0.08−0.135051.92+0.00−0.251.42+0.10−0.00
DR-5254.30+0.50−0.001.25+0.08−0.083.25+0.08−0.135253.92+0.00−0.251.42+0.10−0.00
DR-5355.32+0.50−0.001.25+0.08−0.083.25+0.08−0.135354.92+0.00−0.251.42+0.10−0.00
DR-5557.38+0.63−0.001.25+0.08−0.083.50+0.08−0.135557.00+0.00−0.301.42+0.10−0.00
DR-5658.40+0.63−0.001.25+0.08−0.083.50+0.08−0.135658.00+0.00−0.301.42+0.10−0.00
DR-5860.43+0.63−0.001.25+0.08−0.083.50+0.08−0.135860.00+0.00−0.301.42+0.10−0.00
DR-5961.54+0.63−0.001.25+0.08−0.083.50+0.08−0.135961.08+0.00−0.301.42+0.10−0.00
DR-6062.57+0.63−0.001.25+0.08−0.083.50+0.08−0.136062.14+0.00−0.301.42+0.10−0.00
DR-6163.65+0.63−0.001.25+0.08−0.083.50+0.08−0.136163.24+0.00−0.301.42+0.10−0.00
DR-6264.70+0.63−0.001.25+0.08−0.083.50+0.08−0.136264.24+0.00−0.301.42+0.10−0.00
DR-6365.70+0.63−0.001.25+0.08−0.083.76+0.08−0.136365.24+0.00−0.301.42+0.10−0.00
DR-6466.77+0.63−0.001.25+0.08−0.083.76+0.08−0.136466.34+0.00−0.301.42+0.10−0.00
DR-6567.82+0.63−0.001.25+0.08−0.083.76+0.08−0.136567.34+0.00−0.301.42+0.10−0.00
DR-6668.80+0.63−0.001.25+0.08−0.083.76+0.08−0.136668.34+0.00−0.301.42+0.10−0.00
DR-6769.90+0.63−0.001.25+0.08−0.083.76+0.08−0.136769.40+0.00−0.301.42+0.10−0.00
DR-6870.94+0.63−0.001.25+0.08−0.084.01+0.08−0.136870.44+0.00−0.301.42+0.10−0.00
DR-6971.94+0.63−0.001.25+0.08−0.084.01+0.08−0.136971.44+0.00−0.301.42+0.10−0.00
DR-7072.94+0.63−0.001.25+0.08−0.084.01+0.08−0.137072.44+0.00−0.301.42+0.10−0.00
DR-7173.99+0.63−0.001.25+0.08−0.084.01+0.08−0.137173.44+0.00−0.301.42+0.10−0.00
DR-7275.04+0.76−0.001.25+0.08−0.084.27+0.10−0.157274.54+0.00−0.301.42+0.10−0.00
DR-7578.07+0.76−0.001.25+0.08−0.084.27+0.10−0.157577.54+0.00−0.301.42+0.10−0.00
DR-7881.21+0.76−0.001.55+0.08−0.084.27+0.10−0.157880.60+0.00−0.301.73+0.13−0.00
DR-8083.22+0.76−0.001.55+0.08−0.084.52+0.10−0.158082.64+0.00−0.301.73+0.13−0.00
DR-8285.28+0.76−0.001.55+0.08−0.084.52+0.10−0.158284.70+0.00−0.301.73+0.13−0.00
DR-8588.38+0.76−0.001.55+0.08−0.084.78+0.10−0.158587.80+0.00−0.301.73+0.13−0.00
DR-8891.45+0.76−0.001.55+0.08−0.084.78+0.10−0.158890.84+0.00−0.301.73+0.13−0.00
DR-9093.56+0.76−0.001.55+0.08−0.085.03+0.10−0.159092.94+0.00−0.301.73+0.13−0.00
DR-9295.66+0.76−0.001.55+0.08−0.085.03+0.10−0.159295.00+0.00−0.301.73+0.13−0.00
DR-9598.69+0.76−0.001.55+0.08−0.085.03+0.10−0.159598.00+0.00−0.301.73+0.13−0.00
DR-98101.83+0.76−0.001.55+0.08−0.085.28+0.10−0.1598101.14+0.00−0.301.73+0.13−0.00
DR-100103.83+0.76−0.001.55+0.08−0.085.28+0.10−0.15100103.14+0.00−0.301.73+0.13−0.00
DR-102106.00+0.76−0.001.55+0.08−0.085.54+0.10−0.15102105.30+0.00−0.301.73+0.13−0.00
DR-105109.00+0.90−0.001.55+0.08−0.085.54+0.10−0.15105108.30+0.00−0.301.73+0.13−0.00
DR-108112.22+0.90−0.001.55+0.08−0.085.80+0.10−0.15108111.46+0.00−0.301.73+0.13−0.00
DR-110114.25+0.90−0.001.55+0.08−0.085.80+0.10−0.15110113.46+0.00−0.301.73+0.13−0.00
DR-112116.44+0.90−0.001.55+0.08−0.086.05+0.10−0.15112115.60+0.00−0.301.73+0.13−0.00
DR-115119.44+0.90−0.001.83+0.08−0.086.05+0.10−0.15115118.60+0.00−0.301.73+0.13−0.00
DR-120123.54+0.90−0.001.83+0.10−0.106.35+0.10−0.15120123.70+0.00−0.302.00+0.13−0.00
DR-125129.59+0.90−0.001.83+0.10−0.106.35+0.10−0.15125128.70+0.00−0.302.00+0.13−0.00
DR-130134.71+0.90−0.001.83+0.10−0.106.35+0.10−0.15130133.80+0.00−0.302.00+0.13−0.00
DR-135139.74+1.14−0.001.83+0.10−0.106.35+0.10−0.15135138.80+0.00−0.352.00+0.15−0.00
DR-140144.87+1.14−0.001.83+0.10−0.106.35+0.10−0.15140143.90+0.00−0.352.00+0.15−0.00
DR-145150.04+1.14−0.001.83+0.10−0.106.35+0.10−0.15145149.00+0.00−0.352.00+0.15−0.00
DR-150155.07+1.14−0.001.83+0.10−0.106.35+0.10−0.15150154.00+0.00−0.352.00+0.15−0.00
DR-155160.72+1.40−0.002.18+0.10−0.107.92+0.10−0.15155159.60+0.00−0.402.40+0.15−0.00
DR-160165.74+1.40−0.002.18+0.10−0.103.00+0.10−0.15160164.60+0.00−0.402.40+0.15−0.00
DR-165170.77+1.40−0.002.18+0.10−0.103.25+0.10−0.15165169.60+0.00−0.402.40+0.15−0.00
DR-170176.05+1.40−0.002.18+0.10−0.103.25+0.10−0.15170174.80+0.00−0.402.40+0.15−0.00
DR-175181.05+1.40−0.002.18+0.10−0.103.25+0.10−0.15175179.80+0.00−0.402.40+0.15−0.00
DR-180186.38+1.40−0.002.18+0.10−0.103.25+0.10−0.15180185.08+0.00−0.402.40+0.15−0.00
DR-185191.10+1.40−0.002.18+0.10−0.103.25+0.10−0.15185190.08+0.00−0.402.40+0.15−0.00
DR-190196.45+1.65−0.002.18+0.10−0.103.50+0.10−0.15190195.08+0.00−0.402.40+0.15−0.00
DR-195201.74+1.65−0.002.18+0.10−0.107.92+0.10−0.15195200.34+0.00−0.402.40+0.15−0.00
DR-200206.76+1.65−0.002.18+0.10−0.109.52+0.10−0.15200205.34+0.00−0.402.40+0.15−0.00
DR-210217.10+1.65−0.002.18+0.10−0.109.52+0.10−0.15210215.60+0.00−0.402.40+0.15−0.00
DR-220227.40+1.65−0.002.18+0.10−0.109.52+0.10−0.15220225.84+0.00−0.402.40+0.15−0.00
DR-230237.73+1.65−0.002.18+0.10−0.109.52+0.10−0.15230236.10+0.00−0.402.40+0.15−0.00
DR-240247.80+1.65−0.002.18+0.10−0.109.52+0.10−0.15240246.10+0.00−0.402.40+0.15−0.00
DR-250258.10+1.65−0.002.18+0.10−0.109.52+0.10−0.15250256.36+0.00−0.402.40+0.15−0.00
DR-260268.43+1.65−0.002.18+0.10−0.109.52+0.10−0.15260266.60+0.00−0.402.40+0.15−0.00
DR-270278.50+1.65−0.002.18+0.10−0.109.52+0.10−0.15270276.60+0.00−0.402.40+0.15−0.00
DR-280288.82+1.65−0.002.18+0.10−0.109.52+0.10−0.15280286.86+0.00−0.402.40+0.15−0.00
검색 결과가 없습니다. 다른 규격·치수로 검색하거나 문의해 주세요.
※ 재질 스프링강 / 스프링용 스텐레스강 · 전 품목 주문 제작(발주 전 문의) · 단위 mm · † DR-18 Df 16.85 · DR-120 Df 123.54(홈지름 Dg보다 작음) 이 제품 구매하러 가기 →
